Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the input and output signals.
The LMH0324RTWR requires a specific bias voltage and current to operate correctly. Ensure that the VCC pin is connected to a stable 3.3V or 5V power supply, and the VBIAS pin is connected to a voltage divider or a dedicated bias voltage source. Refer to the datasheet for specific biasing requirements.
The LMH0324RTWR can handle input signal amplitudes up to 2Vpp differential, but it's recommended to limit the input amplitude to 1.5Vpp to ensure optimal performance and prevent damage to the device.
Common issues like oscillations or instability can be caused by improper PCB layout, inadequate biasing, or incorrect input signal termination. Check the PCB layout, biasing, and input signal termination, and ensure that the device is operated within its recommended specifications. Consult the datasheet and application notes for troubleshooting guidelines.
The LMH0324RTWR is specified to operate from -40°C to 85°C, but it's recommended to operate the device within a narrower temperature range (e.g., 0°C to 70°C) to ensure optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH0324RTWR Overview

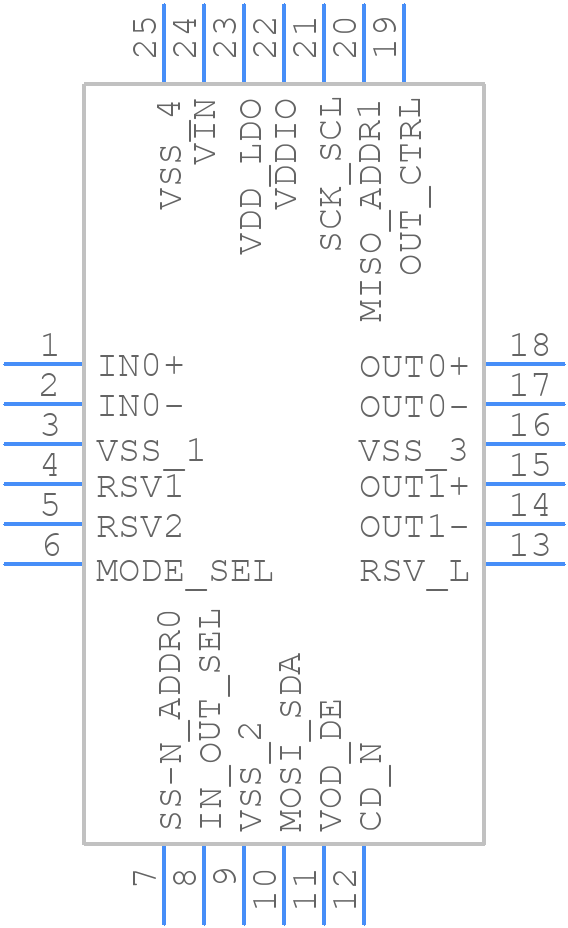

Use the download button to access the LMH0324RTWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH03,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
