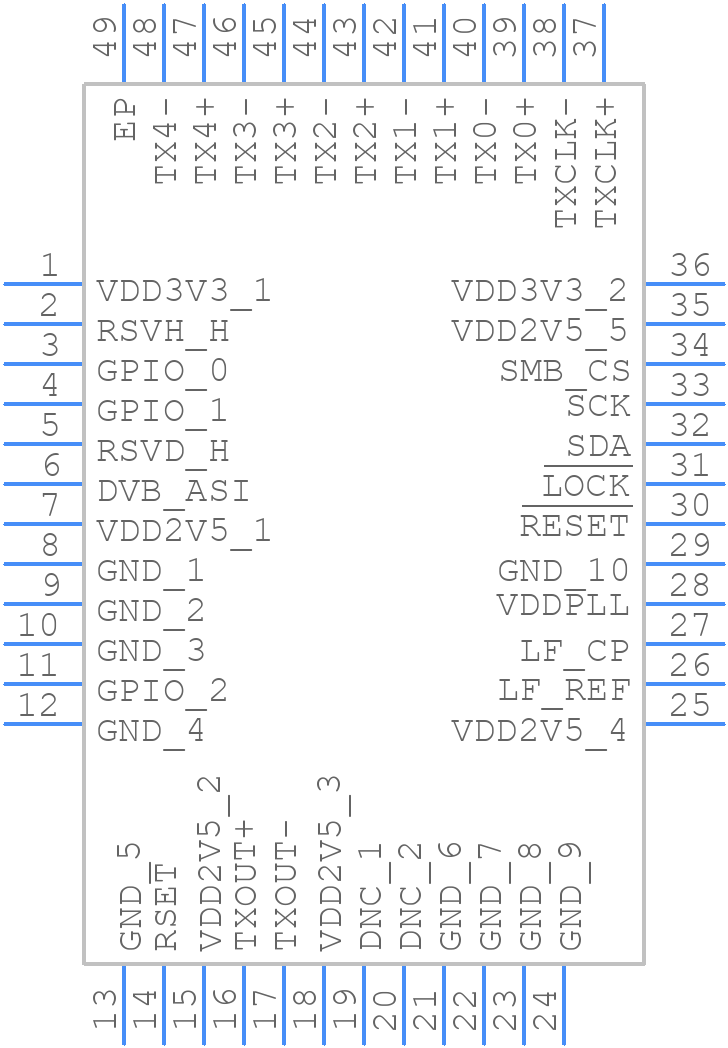

LMH0340SQE/NOPB - Texas Instruments

LMH0340SQE/NOPB Details

• Manufacturer Part Number:

  LMH0340SQE/NOPB

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LLP-48

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Differential Output:

  NO

• Driver Number of Bits:

  5

• Input Characteristics:

  DIFFERENTIAL

• Interface IC Type:

  LINE DRIVER

• Interface Standard:

  GENERAL PURPOSE

• JESD-30 Code:

  S-XQCC-N48

• JESD-609 Code:

  e3

• Length:

  7 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  5

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  2.7 V

• Output Characteristics:

  OPEN-COLLECTOR

• Output Low Current-Max:

  0.002 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Supply Current-Max:

  85 mA

• Supply Voltage-Max:

  2.625 V

• Supply Voltage-Min:

  2.375 V

• Supply Voltage-Nom:

  2.5 V

• Supply Voltage1-Max:

  3.465 V

• Supply Voltage1-Min:

  3.135 V

• Supply Voltage1-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7 mm
