Texas Instruments provides a recommended PCB layout in the application note SLWA043, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The LMH0340SQX/NOPB requires a stable power supply with adequate decoupling to ensure proper operation. TI recommends using a low-ESR capacitor (e.g., 10uF) close to the device's power pins, and a 0.1uF capacitor in parallel to filter high-frequency noise.
The maximum cable length supported by the LMH0340SQX/NOPB depends on the specific application and the type of cable used. However, as a general guideline, TI recommends keeping the cable length below 10 meters to ensure reliable operation and minimize signal degradation.
The LMH0340SQX/NOPB is rated for operation up to 85°C, but it can be used in high-temperature environments with proper thermal management. TI recommends using a heat sink or thermal pad to keep the device temperature below 85°C to ensure reliable operation and prevent thermal shutdown.
TI provides a troubleshooting guide in the application note SLWA044, which covers common issues and their solutions, such as signal integrity problems, power supply issues, and thermal management concerns.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH0340SQX/NOPB Overview

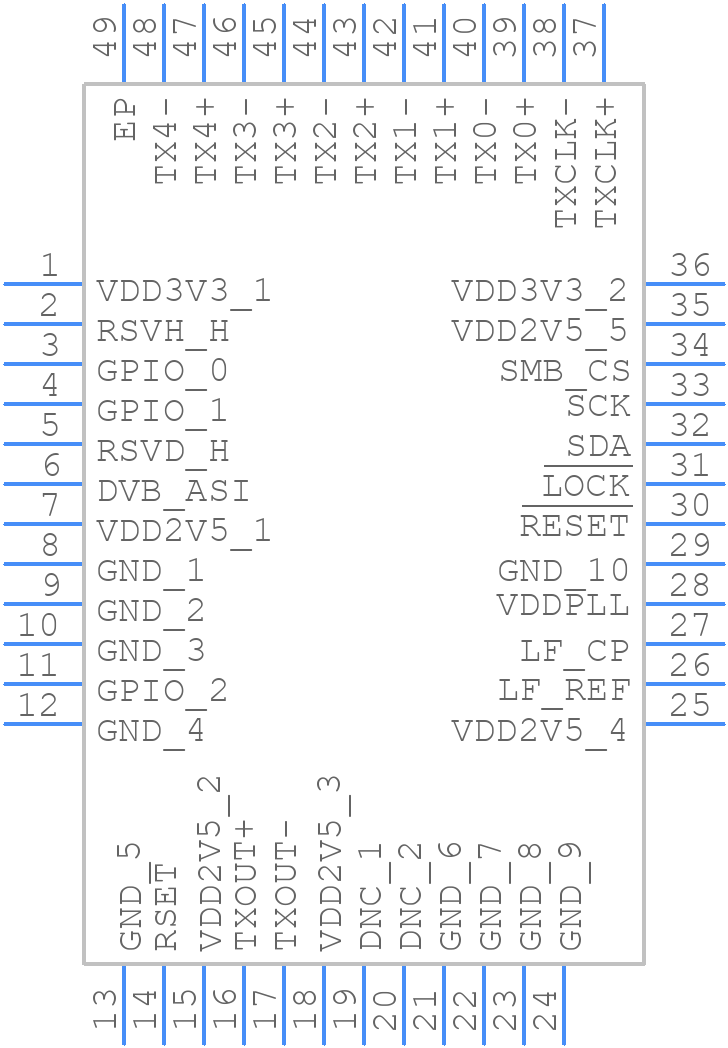

Use the download button to access the LMH0340SQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH03,
or try a keyword search, such as Line Driver or Receivers
