- Part Number LMH1208RTVR
- Manufacturer Texas Instruments
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RTV0032E
- Released Date Jun 1, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LMH1208RTVR Details
-
Manufacturer Part Number:
LMH1208RTVR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Date Of Intro:
2017-04-29
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
LMH1208RTVR Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for signal traces.
-
The LMH1208RTVR requires a bias voltage of 5V, and the datasheet recommends using a 0.1uF decoupling capacitor between the VCC pin and ground. Additionally, ensure that the input and output signals are properly terminated to prevent reflections and ensure signal integrity.
-
The LMH1208RTVR has an operating temperature range of -40°C to 85°C, but it's important to note that the device's performance may degrade at higher temperatures. It's recommended to follow the thermal design guidelines in the datasheet to ensure reliable operation.
-
While the LMH1208RTVR is designed for 50-ohm systems, it can be used in non-50-ohm systems with some adjustments. However, this may require additional circuitry to match the impedance, and the device's performance may be affected. It's recommended to consult with a Texas Instruments application engineer for guidance on non-50-ohm system design.
-
Troubleshooting issues with the LMH1208RTVR typically involves checking the power supply, input and output signals, and PCB layout. Use an oscilloscope to verify signal integrity and check for signs of oscillation or distortion. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
Community Provided
System Verified
Community Approved
LMH1208RTVR Overview

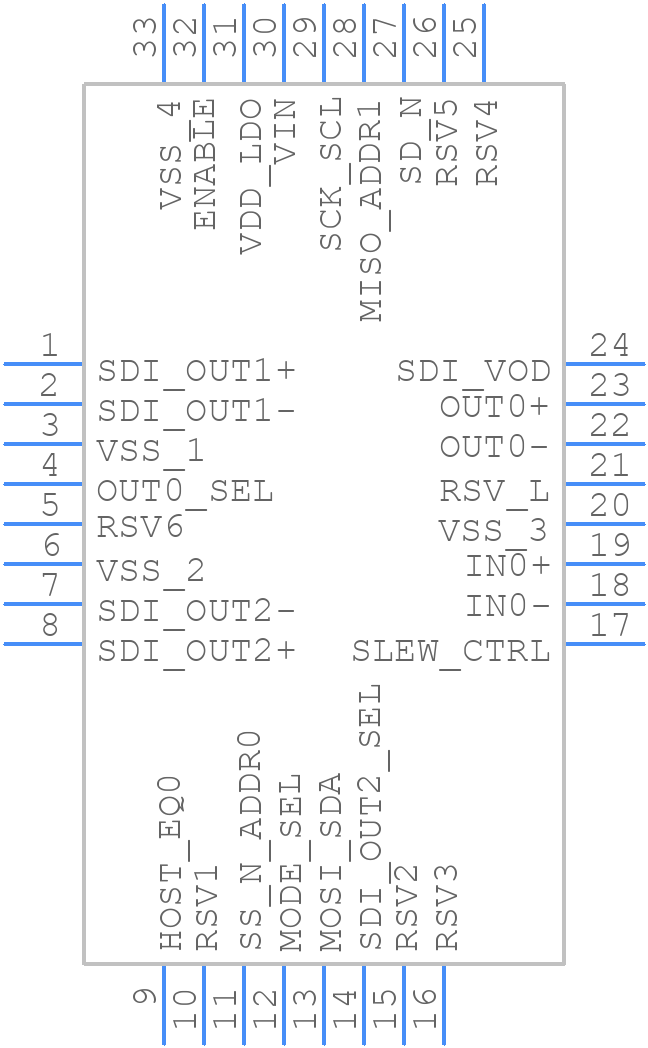

Use the download button to access the LMH1208RTVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH12,
or try a keyword search, such as Other Consumer ICs
