CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Supply Voltage-Max:
2.625 V
Supply Voltage-Min:
2.375 V
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
4 mm
LMH1218RTWT Frequently Asked Questions (FAQs)
A good PCB layout for the LMH1218RTWT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded enclosure and keep the device away from other noise-sensitive components.
To optimize the LMH1218RTWT for low power consumption, use a low-ESR output capacitor, minimize the output voltage ripple, and adjust the feedback resistors to minimize the quiescent current. Additionally, consider using a low-power mode or shutdown feature if available.
The LMH1218RTWT has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good airflow, use a heat sink if necessary, and avoid overheating the device. Monitor the device temperature and adjust the operating conditions accordingly.
To troubleshoot issues with the LMH1218RTWT, check the PCB layout, decoupling, and component selection. Verify that the input and output capacitors are properly selected and placed. Use an oscilloscope to check for oscillations and measure the output voltage ripple. Consult the datasheet and application notes for guidance.
The LMH1218RTWT is a commercial-grade device, but it can be used in high-reliability or aerospace applications with proper qualification and testing. Consult with Texas Instruments and follow their guidelines for using commercial-grade devices in high-reliability applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH1218RTWT Overview

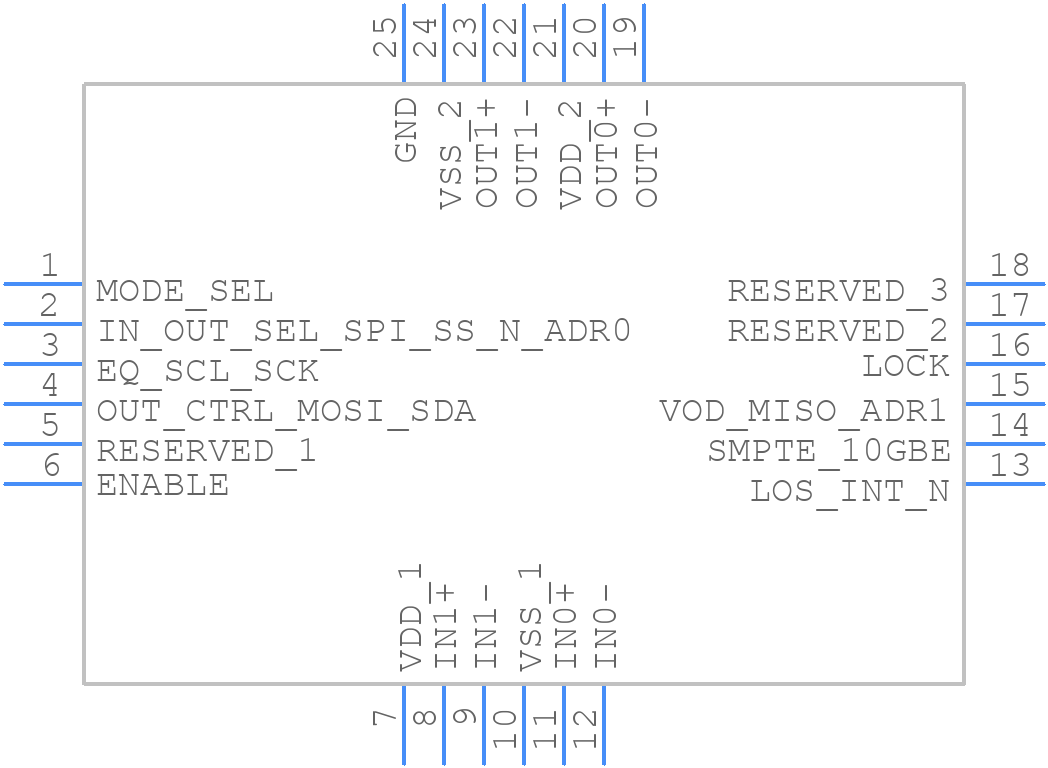

Use the download button to access the LMH1218RTWT schematic symbol, PCB footprint, and 3D model.
