LMH1226RTWT - Texas Instruments

Description: 12G-SDI Dual-Output Reclocker

Download LMH1226RTWT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

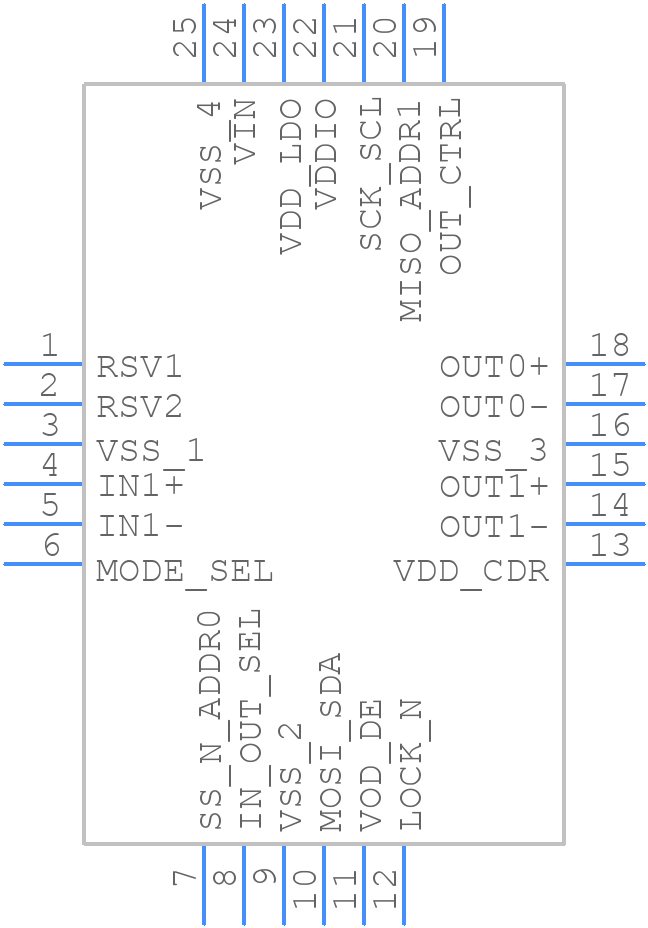

LMH1226RTWT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMH1226RTWT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTW0024A-2021
click to zoom
3D Models
LMH1226RTWT - Texas Instruments - 3D model - Quad Flat No-Lead - RTW0024A-2021
click to zoom

LMH1226RTWT Details

  • Manufacturer Part Number:

    LMH1226RTWT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LMH1226RTWT Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMH1226RTWT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
  • The LMH1226RTWT requires a single 3.3V or 5V power supply. Ensure proper decoupling by placing a 0.1uF ceramic capacitor between the power pin and ground, and a 10uF bulk capacitor between the power pin and ground. Place these capacitors close to the device.
  • The LMH1226RTWT can support data rates up to 2.5 Gbps, making it suitable for high-speed applications such as HDMI, DisplayPort, and PCIe.
  • The LMH1226RTWT has internal 50Ω termination resistors, but you can configure the input and output impedance by adding external resistors. Refer to the datasheet and application notes for specific configuration examples.
  • The LMH1226RTWT operates over a temperature range of -40°C to 85°C, making it suitable for a wide range of applications.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LMH1226RTWT Overview

Use the download button to access the LMH1226RTWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH12, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
