A good PCB layout for the LMH1297RTVR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a shielded enclosure and keeping the input and output traces short and away from each other can help minimize EMI and noise.
To optimize the LMH1297RTVR's performance, consider the specific requirements of your application, such as the input signal frequency, amplitude, and impedance. Adjust the gain, bandwidth, and output impedance accordingly. You may also need to add external components, such as filters or amplifiers, to achieve the desired performance.
The LMH1297RTVR has a maximum junction temperature of 150°C. Ensure reliable operation by providing adequate heat sinking, using a thermal pad or heat sink, and keeping the device away from heat sources. Monitor the device's temperature and adjust the operating conditions accordingly to prevent overheating.
To troubleshoot common issues with the LMH1297RTVR, start by checking the power supply voltage, input signal integrity, and output loading. Verify that the device is properly biased and that the input and output impedances are matched. Use an oscilloscope to visualize the signals and identify any anomalies. Consult the datasheet and application notes for guidance on specific troubleshooting techniques.
The LMH1297RTVR has built-in ESD protection, but it's still important to handle the device with care. Use anti-static wrist straps, mats, and packaging materials to prevent static electricity damage. Avoid touching the device's pins or exposing it to high-voltage sources. Follow proper handling and storage procedures to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH1297RTVR Overview

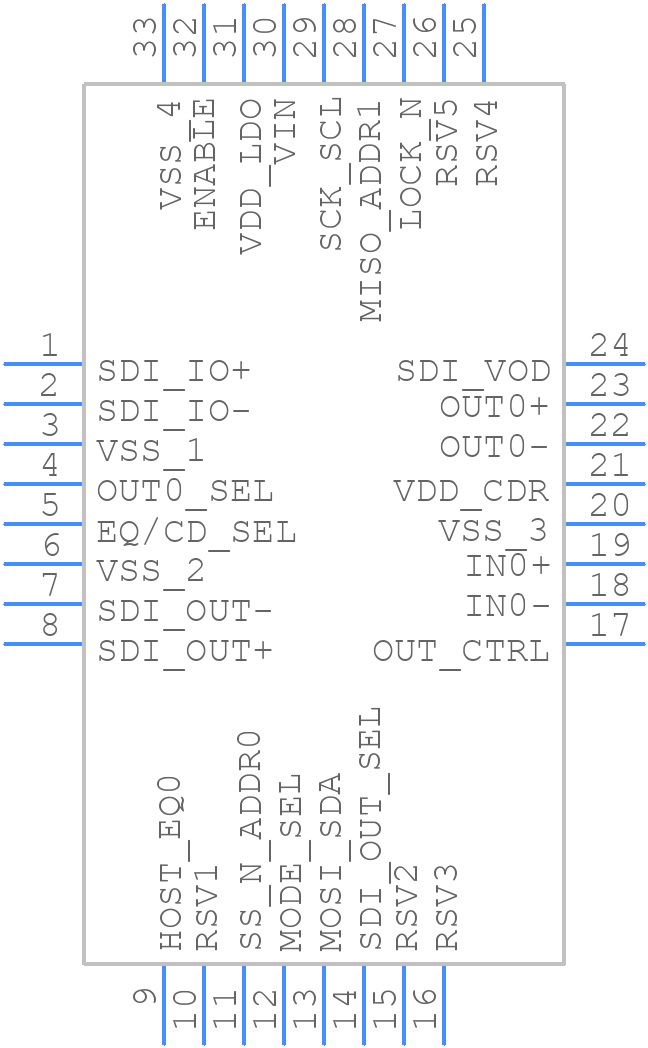

Use the download button to access the LMH1297RTVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH12,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
