- Part Number LMH6612MA
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P600X175-8N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LMH6612MA Details
-
Manufacturer Part Number:
LMH6612MA
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOIC-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Additional Feature:
IT CAN ALSO OPERATED IN 2.7V TO 11V SINGLE SUPPLY
-
Bandwidth-Nom:
365000 kHz
LMH6612MA Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
-
The choice of input and output capacitors depends on the specific application and frequency range. In general, X7R or X5R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired cutoff frequency and impedance matching requirements.
-
The maximum power dissipation of the LMH6612MA is 1.4W. To ensure it doesn't overheat, it's essential to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to keep the ambient temperature below 85°C. Additionally, the device should be operated within the recommended operating conditions and not exceed the maximum junction temperature of 150°C.
-
Yes, the LMH6612MA can be used in a differential amplifier configuration. However, it's essential to follow the recommended circuit topology and layout guidelines to ensure common-mode rejection and minimize noise. Texas Instruments provides application notes and design guides for differential amplifier configurations using the LMH6612MA.
-
Common issues with the LMH6612MA can be troubleshooted by checking the PCB layout, ensuring proper power supply decoupling, and verifying the input and output impedance matching. Additionally, using a spectrum analyzer or an oscilloscope can help identify oscillations or instability. Texas Instruments also provides application notes and technical support resources to help troubleshoot and resolve issues.
Trust Checks
System Verified
LMH6612MA Overview

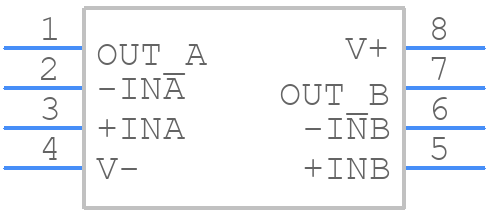

Use the download button to access the LMH6612MA schematic symbol, PCB footprint, and 3D model.
