Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common-mode choke or a ferrite bead to filter out high-frequency noise.
To ensure stability, make sure to follow the recommended component values and PCB layout. Additionally, it's recommended to add a 10nF to 100nF capacitor between the output and the inverting input to improve stability. Also, ensure that the input and output impedance are matched to the device's input and output impedance.
The LMH6882SQ/NOPB has an operating temperature range of -40°C to 125°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal shutdown.
Yes, the LMH6882SQ/NOPB is suitable for high-reliability and aerospace applications. However, it's recommended to follow Texas Instruments' guidelines for high-reliability design and to perform thorough testing and validation to ensure the device meets the required specifications.
To troubleshoot common issues, start by checking the PCB layout and component values to ensure they match the recommended values. Then, use an oscilloscope to measure the input and output waveforms to identify any signs of oscillation or instability. Finally, check the power supply and decoupling capacitors to ensure they are adequate.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LMH6882SQ/NOPB Overview

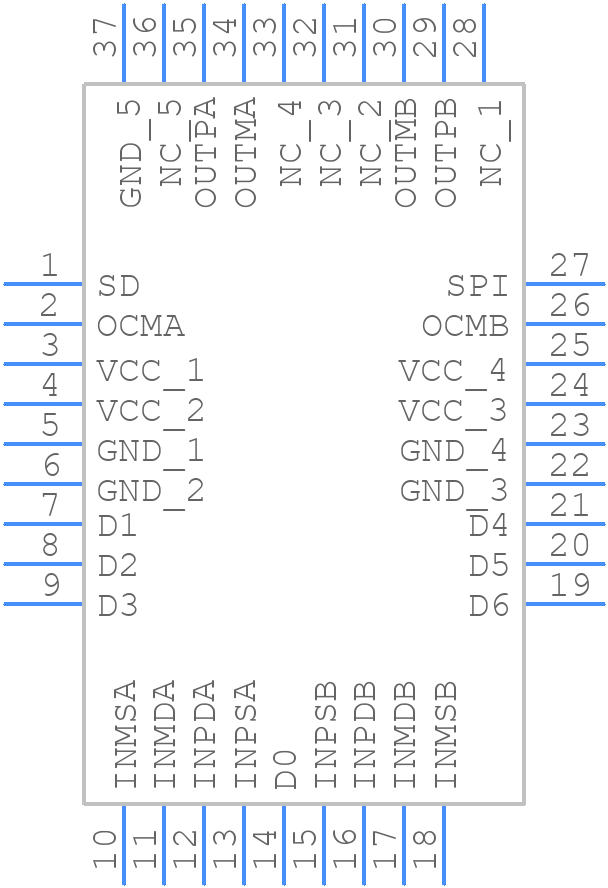

Use the download button to access the LMH6882SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH68,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
