A good PCB layout for the LMH6882SQE involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output impedances are matched, and the device is operated within its recommended operating conditions. Additionally, consider adding a small capacitor (e.g., 10nF) between the output and ground to improve stability.
The maximum power dissipation of the LMH6882SQE is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
While the LMH6882SQE is primarily designed as a current-feedback amplifier, it can be used as a voltage amplifier with some limitations. However, the device's bandwidth and slew rate will be reduced, and the output impedance will be higher than in current-feedback mode. Consult the datasheet and application notes for more information.
To protect the LMH6882SQE from overvoltage and ESD damage, use voltage clamps or transient voltage suppressors (TVS) on the input and output pins. Additionally, follow proper ESD handling and storage procedures, and ensure that the device is handled and stored in a static-protected environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6882SQE/NOPB Overview

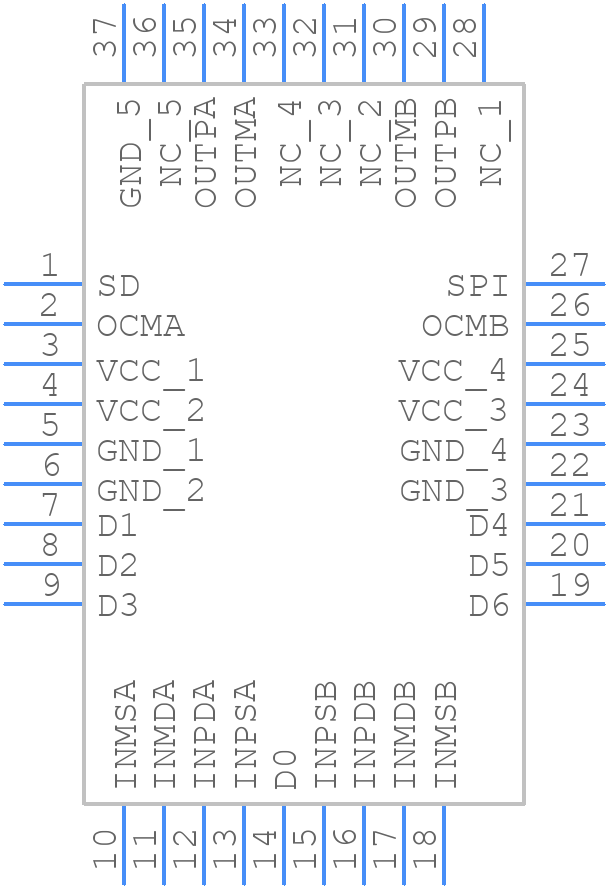

Use the download button to access the LMH6882SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH68,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
