LMK03328RHSR - Texas Instruments

Description: Clock Generator 1MHz to 300MHz-IN 1000MHz-OUT 48-Pin WQFN EP T/R

Download LMK03328RHSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

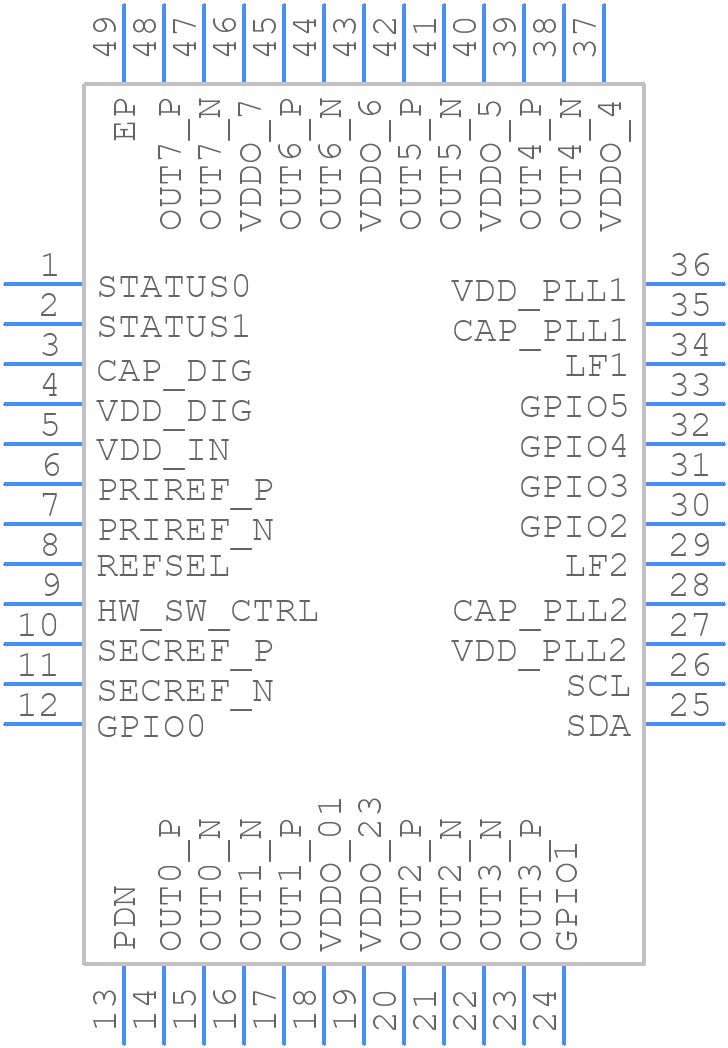

LMK03328RHSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMK03328RHSR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHS0048B_
click to zoom
3D Models
LMK03328RHSR - Texas Instruments - 3D model - Quad Flat No-Lead - RHS0048B_
click to zoom

LMK03328RHSR Details

  • Manufacturer Part Number:

    LMK03328RHSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    5400 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    52 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

LMK03328RHSR Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMK03328RHSR involves placing the device close to the crystal oscillator, using a solid ground plane, and minimizing the distance between the device and the crystal. TI provides a recommended PCB layout in the datasheet and application notes.
  • To optimize the clock tree, ensure that the clock signal is routed as a differential pair, use a low-impedance clock distribution network, and minimize clock signal skew. TI provides guidelines for clock tree design in the datasheet and application notes.
  • TI recommends using a 10uF capacitor in parallel with a 100nF capacitor for power supply decoupling. The capacitors should be placed as close as possible to the device's power pins.
  • The LMK03328RHSR can be configured for a specific clock frequency using the device's register settings. TI provides a clock configuration tool and application notes to help with the configuration process.
  • The LMK03328RHSR has an operating temperature range of -40°C to 85°C. However, the device's performance may degrade at higher temperatures, and the user should consult the datasheet for specific temperature-related specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMK03328RHSR Overview

Use the download button to access the LMK03328RHSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMK03, or try a keyword search, such as Clock Generators
