LMK03328RHST - Texas Instruments

Description: Ultra-Low Jitter Clock Generator Family With Two Independent PLLs

Download LMK03328RHST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

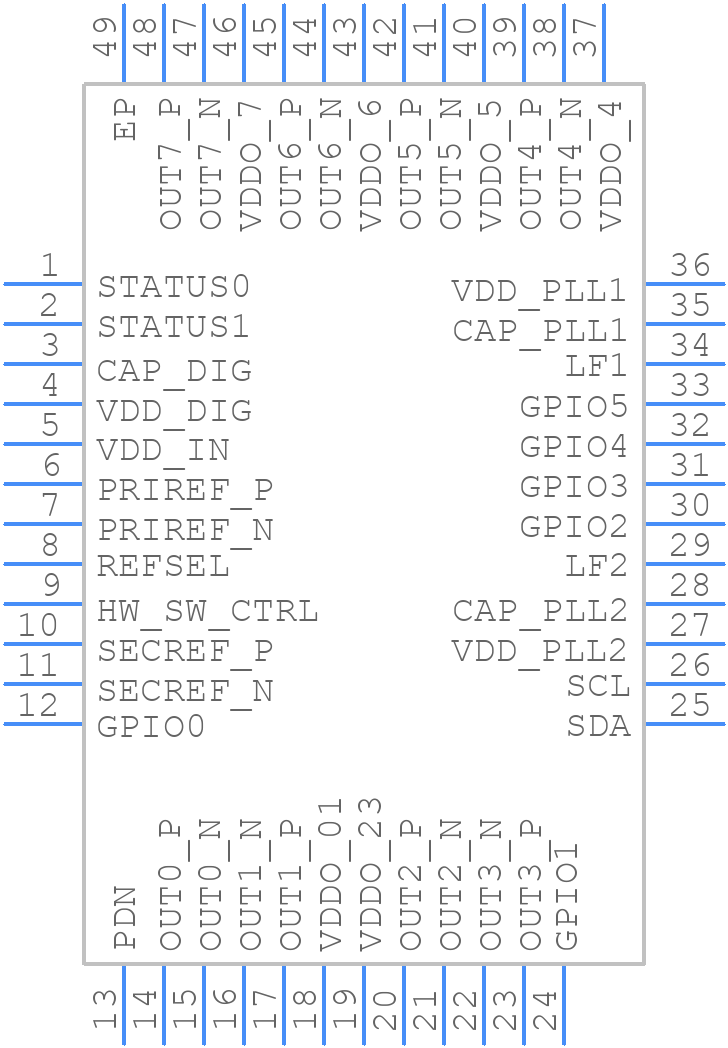

LMK03328RHST - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMK03328RHST - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LMK03328RHST
click to zoom
3D Models
LMK03328RHST - Texas Instruments - 3D model - Quad Flat No-Lead - LMK03328RHST
click to zoom

LMK03328RHST Details

  • Manufacturer Part Number:

    LMK03328RHST

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    5400 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    52 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

LMK03328RHST Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors to ensure optimal performance.
  • The LMK03328RHST can be configured using the TI Clock Design Tool or by manually calculating the register settings based on the desired clock frequency. The datasheet provides a detailed description of the register settings and calculation formulas.
  • The maximum output current of the LMK03328RHST is 20 mA per output, but it's essential to consider the total current consumption and thermal design to ensure reliable operation.
  • The LMK03328RHST is designed to operate from a 2.97 V to 3.63 V supply voltage, but it's possible to use it with a different voltage supply with some limitations. Consult the datasheet and application notes for more information.
  • Troubleshooting the LMK03328RHST typically involves checking the power supply, clock input, and output signals using an oscilloscope or logic analyzer. Consult the datasheet and application notes for more information on troubleshooting techniques.
