LMP8481MM-S/NOPB - Texas Instruments

Description: 76-V, Bi-Directional, High-Side, High-Speed, Voltage Output Current Sensing Amplifier

Download LMP8481MM-S/NOPB Model
Schematic

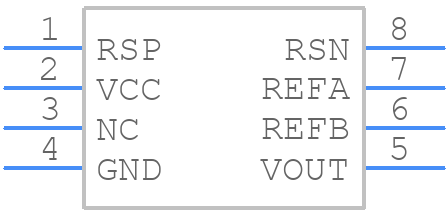

symbols
