A good PCB layout for the LMP8481MME-H/NOPB involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the input and output capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The choice of input and output capacitors for the LMP8481MME-H/NOPB depends on the specific application and the desired performance. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired ripple rejection and noise filtering requirements.
The maximum power dissipation of the LMP8481MME-H/NOPB is 1.4W. To ensure it doesn't overheat, it's recommended to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the device in a well-ventilated area. Additionally, the device should be operated within the recommended operating temperature range of -40°C to 125°C.
Yes, the LMP8481MME-H/NOPB can be used in high-temperature environments, but with some limitations. The device is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. Additionally, the device's performance and reliability may degrade at high temperatures, so it's recommended to derate the device's power dissipation and operating frequency accordingly.
To ensure the LMP8481MME-H/NOPB is properly biased and configured, follow the recommended application circuit and biasing scheme outlined in the datasheet. Additionally, ensure that the input and output voltages are within the recommended operating range, and that the device is properly decoupled with capacitors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP8481MME-H/NOPB Overview

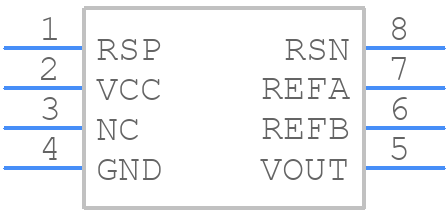

Use the download button to access the LMP8481MME-H/NOPB schematic symbol, PCB footprint, and 3D model.
