LMV242LD/NOPB - Texas Instruments

Description: RF Power Controller IC Cellular, GSM, GPRS, TDMA, TD-SCDMA, WLL 450MHz ~ 2GHz 10-WSON (3x3)

Download LMV242LD/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

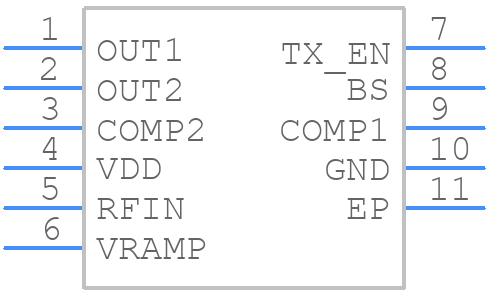

LMV242LD/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMV242LD/NOPB - Texas Instruments PCB footprint - Other - Other - NGY0010A_2025-1
click to zoom
3D Models
LMV242LD/NOPB - Texas Instruments - 3D model - Other - NGY0010A_2025-1
click to zoom

LMV242LD/NOPB Details

  • Manufacturer Part Number:

    LMV242LD/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Max:

    2000 MHz

  • Operating Frequency-Min:

    450 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    POSITIVE

  • Power Supplies:

    2.6/5.5 V

  • RF/Microwave Device Type:

    LINEAR DETECTOR

  • Supply Current-Max:

    15 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

LMV242LD/NOPB Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the LMV242LD/NOPB is 2.7V to 5.5V, although it can operate down to 2.2V with reduced performance.
  • To ensure stability, it's recommended to use a gain resistor (Rg) between 1kΩ and 10kΩ, and a feedback capacitor (Cf) between 2pF and 10pF, depending on the specific application and frequency range.
  • The maximum input voltage range for the LMV242LD/NOPB is from -0.5V to VCC + 0.5V, where VCC is the supply voltage. Exceeding this range may cause damage to the device.
  • Yes, the LMV242LD/NOPB is rated for operation up to 125°C, but the device's performance may degrade at higher temperatures. It's recommended to derate the device's specifications according to the temperature range specified in the datasheet.
  • To reduce noise and oscillations, it's recommended to use a low-ESR capacitor (e.g., ceramic or film capacitor) for power supply decoupling, and to minimize the length of the input and output traces. Additionally, using a noise-reducing capacitor (e.g., 10nF to 100nF) between the input pins can help.
