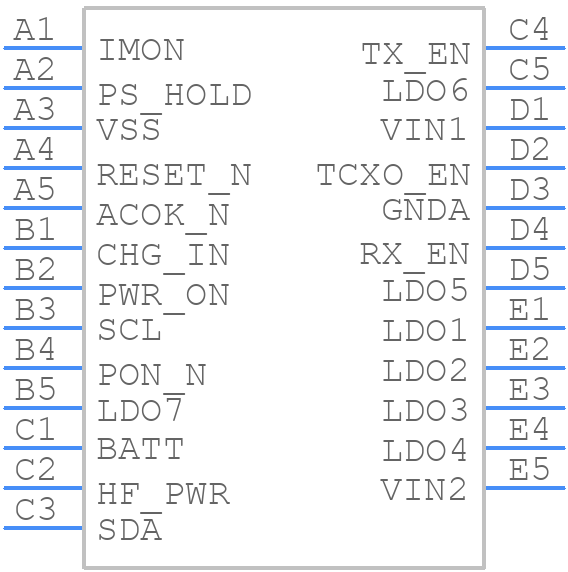

LP3918TL-A/NOPB - Texas Instruments

LP3918TL-A/NOPB Details

• Manufacturer Part Number:

  LP3918TL-A/NOPB

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  BGA

• Package Description:

  2.50 X 2.50 MM, GREEN, DSBGA-25

• Pin Count:

  25

• ECCN Code:

  5A991.G

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  RESTART THRESHOLD VOLTAGE IS 4.05 VOLT

• Adjustable Threshold:

  YES

• Analog IC - Other Type:

  BATTERY MONITOR/PROTECTOR

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  3 V

• JESD-30 Code:

  S-PBGA-B25

• JESD-609 Code:

  e1

• Length:

  2.46 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  25

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.3 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA25,5X5,20

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.675 mm

• Supply Voltage-Max (Vsup):

  6 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Threshold Voltage-Nom:

  +4.05V

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  2.46 mm
