ALSO OPERATES IN SUPPLY VOLTAGE 2.5 TO 4.5V FOR LDO OPERATION
Adjustable Threshold:
YES
Analog IC - Other Type:
POWER SUPPLY SUPPORT CIRCUIT
Input Voltage-Max:
4.5 V
Input Voltage-Min:
2.7 V
JESD-30 Code:
R-PBGA-B20
JESD-609 Code:
e1
Length:
2.46 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Outputs:
6
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.4 A
Output Voltage-Max:
3.3 V
Output Voltage-Min:
0.8 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Equivalence Code:
BGA20,4X5,20
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.675 mm
Supply Voltage-Max (Vsup):
4.5 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
3.6 V
Surface Mount:
YES
Switching Frequency-Max:
2300 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.5 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
1.96 mm
LP8720TLE/NOPB Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the LP8720TLE/NOPB evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To ensure stability and reliability, follow the recommended operating conditions, decoupling, and layout guidelines in the datasheet. Additionally, perform thorough testing and validation of your design, including thermal and electrical stress testing, to ensure the LP8720TLE/NOPB operates within its specified limits.
The LP8720TLE/NOPB can deliver up to 2A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. Refer to the datasheet for detailed information on output current capability and thermal derating.
The LP8720TLE/NOPB is rated for operation up to 125°C, but its performance and reliability may be affected at high temperatures. Ensure that your design provides adequate thermal management, and consider using thermal protection and derating to ensure reliable operation.
Start by reviewing the datasheet and application notes for common issues and troubleshooting guidelines. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. If necessary, contact Texas Instruments support for further assistance and guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP8720TLE/NOPB Overview

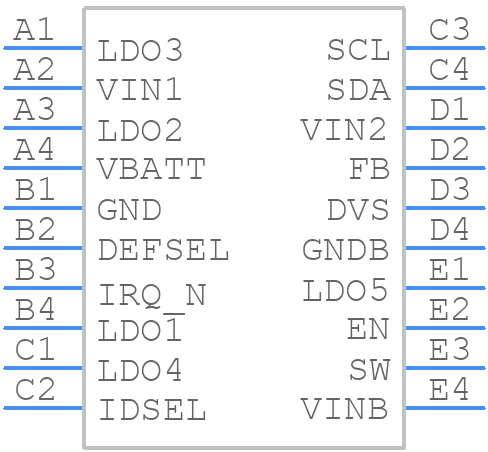

Use the download button to access the LP8720TLE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP872,
or try a keyword search, such as Power Management Circuits
