Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. A general guideline is to use a capacitor with a minimum capacitance of 10uF and a maximum ESR of 100mΩ. TI also provides a capacitor selection tool to help with this process.
Although the datasheet specifies a maximum input voltage of 5.5V, the device can handle up to 6V for short durations (e.g., during power-up or voltage transients). However, sustained operation above 5.5V may reduce the device's reliability and lifespan.
The LP8727TME-B/NOPB is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's essential to follow the thermal management guidelines in the datasheet and application notes to ensure reliable operation in high-temperature environments.
TI provides a troubleshooting guide in the application note SLVAE05, which covers common issues and their possible causes, as well as debugging techniques and tools. Additionally, the TI E2E forum and support teams can provide further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP8727TME-B/NOPB Overview

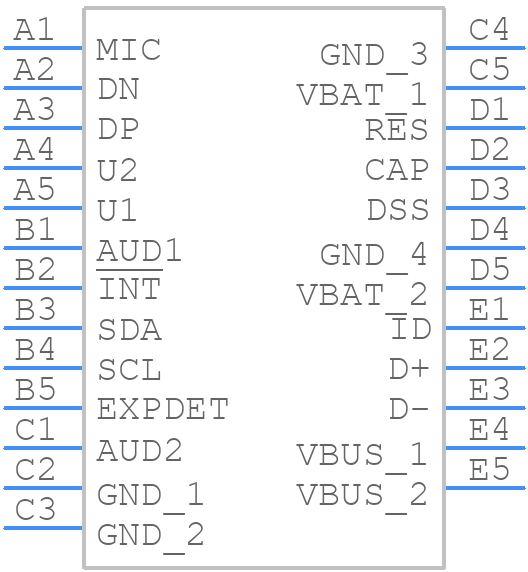

Use the download button to access the LP8727TME-B/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP872,
or try a keyword search, such as Power Management Circuits
