LP8727TMX-B/NOPB footprint, schematic symbol and 3D model by Texas Instruments

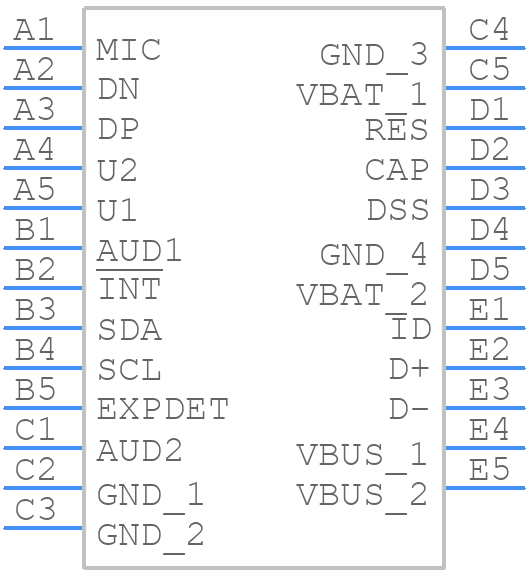

Symbol

click to zoom

PCB Footprints

LP8727TMX-B/NOPB - Texas Instruments PCB footprint - BGA - BGA - YFQ0025_4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LP8727TMX-B/NOPB
Part Number LP8727TMX-B/NOPB
Manufacturer Texas Instruments
Pin Count 25
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - YFQ0025_4
Released Date Dec 13, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LP8727TMX-B/NOPB Details

Manufacturer Part Number:
LP8727TMX-B/NOPB
Brand Name:
Texas Instruments
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.90
Manufacturer:
Texas Instruments
YTEOL:
15
Adjustable Threshold:
YES
Analog IC - Other Type:
LINEAR BATTERY CHARGER
Bandwidth-Nom:
480 kHz
JESD-30 Code:
S-PBGA-B25
JESD-609 Code:
e1
Length:
2.01 mm
Moisture Sensitivity Level:
1
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
25
On-state Resistance-Max (Ron):
3.6 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Shape:
SQUARE
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.675 mm
Supply Current-Max (Isup):
0.4 mA
Supply Voltage-Max (Vsup):
7 V
Supply Voltage-Min (Vsup):
2.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.4 mm
Terminal Position:
BOTTOM
Threshold Voltage-Nom:
+2.5,2.7V
Time@Peak Reflow Temperature-Max (s):
30
Width:
2.01 mm
