LP8728QSQX-A/NOPB - Texas Instruments

Description: Quad Output Step-Down DC/DC Converter for Automotive Applications

Download LP8728QSQX-A/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

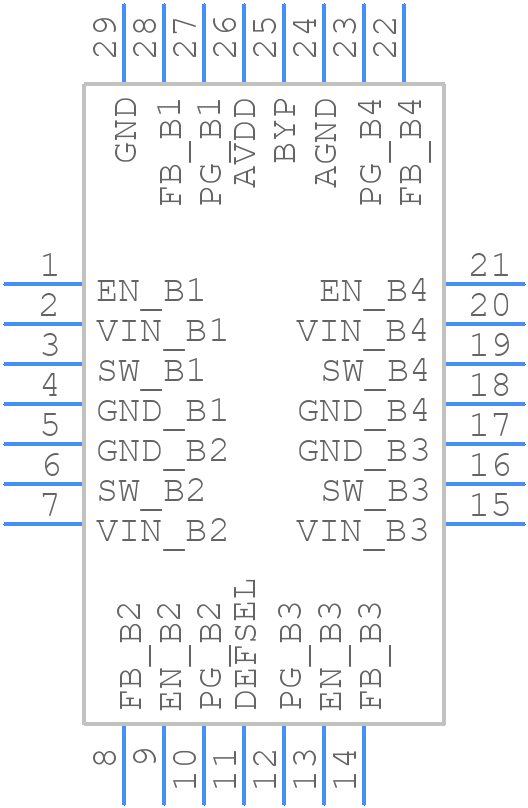

LP8728QSQX-A/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LP8728QSQX-A/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSG(S-PVQFN-N28)
click to zoom
3D Models
LP8728QSQX-A/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RSG(S-PVQFN-N28)
click to zoom

LP8728QSQX-A/NOPB Details

  • Manufacturer Part Number:

    LP8728QSQX-A/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    WQFN-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    3370 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

LP8728QSQX-A/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the LP8728QSQX-A/NOPB evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Texas Instruments provides a configuration tool, the LP8728 Configurator, which allows designers to easily configure the device for their specific application. The tool generates a configuration file that can be used to program the device.
  • The LP8728QSQX-A/NOPB can deliver up to 2A of output current per channel, making it suitable for powering high-current devices such as FPGAs, ASICs, and processors.
  • The LP8728QSQX-A/NOPB has built-in input voltage transient protection and brownout detection, which ensures that the device remains operational during input voltage fluctuations and prevents damage to the device and downstream components.
  • Yes, the LP8728QSQX-A/NOPB is rated for operation up to 125°C, making it suitable for use in high-temperature environments such as industrial, automotive, and aerospace applications.
