Texas Instruments provides a recommended PCB layout in the LP873200RHDRQ1 evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To optimize output voltage accuracy, ensure that the input voltage is within the recommended range, use a high-precision voltage reference, and minimize noise on the VREF pin. Additionally, consider using a voltage margining feature to adjust the output voltage to compensate for any inaccuracies.
The maximum output current capability of each channel is dependent on the specific application and thermal conditions. However, as a general guideline, the LP873200RHDRQ1 can deliver up to 1.5A per channel, with a total maximum output current of 3A. It's essential to consider thermal management and ensure that the device is properly heatsinked to maintain reliability.
The LP873200RHDRQ1 has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. This feature limits the output current to a predetermined value, preventing damage to the device and downstream components in the event of an overcurrent condition.
The recommended input capacitor value is 10uF to 22uF, with a low ESR (Equivalent Series Resistance) and a voltage rating of at least 6.3V. A ceramic or tantalum capacitor is recommended, as they provide low ESR and high reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP873200RHDRQ1 Overview

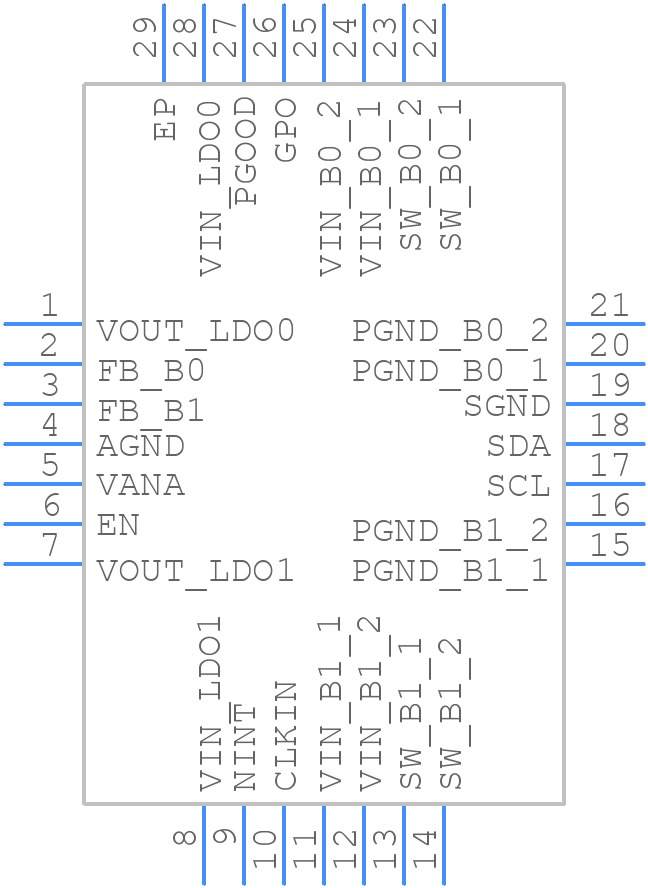

Use the download button to access the LP873200RHDRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP873,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
