Texas Instruments provides a recommended PCB layout in the LP873200RHDTQ1 evaluation module documentation, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
The LP873200RHDTQ1 is a programmable power management IC, and the output voltage can be configured using the I2C interface. The device has a set of registers that control the output voltage, and the specific configuration depends on the desired output voltage and application requirements. Refer to the datasheet and programming guide for more information.
The LP873200RHDTQ1 has an absolute maximum input voltage rating of 6.5V, but the recommended operating input voltage range is 3.5V to 5.5V. Exceeding the absolute maximum rating can damage the device.
To ensure EMC compliance, follow proper PCB layout and design guidelines, use adequate filtering and shielding, and ensure that the device is operated within its specified frequency range. Additionally, Texas Instruments provides EMC-related information and guidelines in the LP873200RHDTQ1 datasheet and application notes.
The LP873200RHDTQ1 has a specific power sequencing behavior during power-up and power-down, which is controlled by the device's internal state machine. The device powers up and powers down in a specific sequence to ensure proper operation and minimize power consumption. Refer to the datasheet and application notes for more information on power sequencing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP873200RHDTQ1 Overview

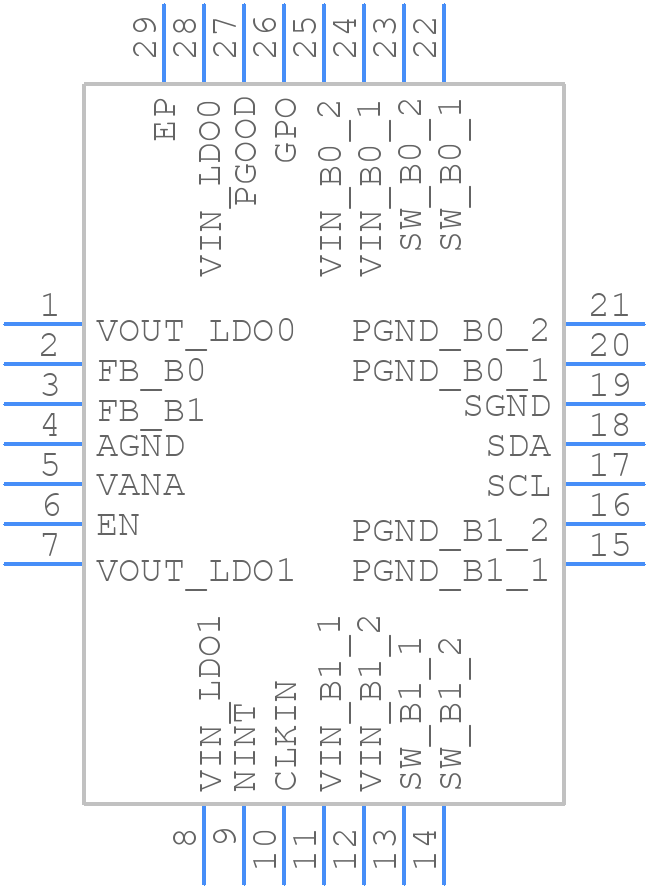

Use the download button to access the LP873200RHDTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP873,
or try a keyword search, such as Power Management Circuits
