Texas Instruments provides a recommended PCB layout in the LP87332 evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and thermal dissipation.
The LP87332BRHDRQ1 has a resistor-programmable output voltage. You can use the voltage-setting resistors (R1 and R2) to set the output voltage. The datasheet provides a formula to calculate the required resistor values for a specific output voltage. You can also use online calculators or Texas Instruments' WEBENCH Power Designer tool to simplify the process.
The LP87332BRHDRQ1 has an absolute maximum input voltage rating of 18V. However, the recommended operating input voltage range is 2.7V to 15V. Exceeding the absolute maximum rating can damage the device.
The LP87332BRHDRQ1 has a thermal shutdown feature that protects the device from overheating. To ensure operation within thermal limits, follow the recommended PCB layout guidelines, use a sufficient heat sink, and ensure good airflow around the device. You can also monitor the device's temperature using the thermal monitoring pin (TMP) and adjust the operating conditions accordingly.
The LP87332BRHDRQ1 is an automotive-qualified device, meeting the AEC-Q100 standard. It's suitable for high-reliability and automotive applications, but you should ensure that your design meets the specific requirements of your application, including temperature range, vibration, and other environmental factors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP87332BRHDRQ1 Overview

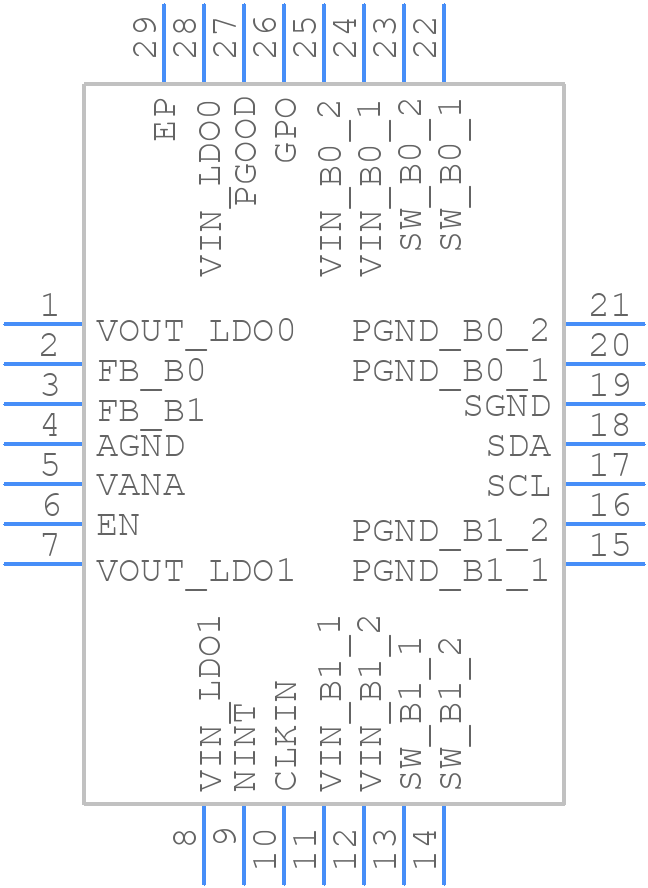

Use the download button to access the LP87332BRHDRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP873,
or try a keyword search, such as Power Management Circuits
