Part Image

LP8765RLE/NOPB - Texas Instruments

Description: IC PMU CHRGR 1.2A OVP 49SMDXT

Download LP8765RLE/NOPB Model

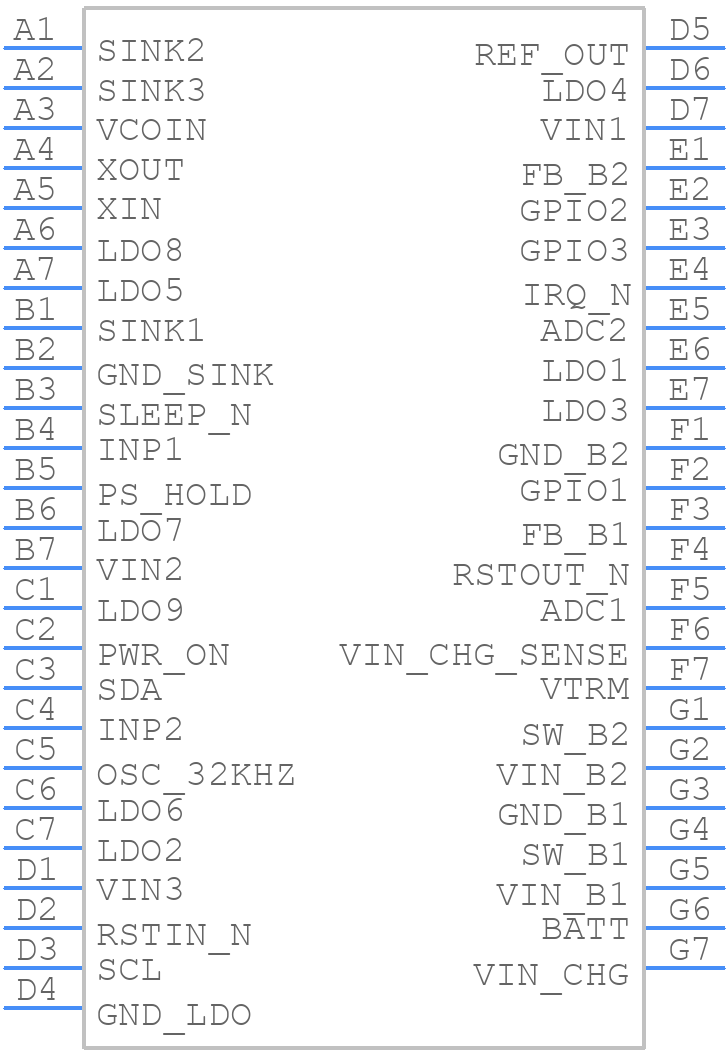

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LP8765RLE/NOPB - Texas Instruments PCB footprint - BGA - BGA - 25-bump Thin micro SMD Package
click to zoom
3D Models
LP8765RLE/NOPB - Texas Instruments  - 3D model - BGA - 25-bump Thin micro SMD Package
click to zoom

LP8765RLE/NOPB Details

  • Manufacturer Part Number:

    LP8765RLE/NOPB

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B49

  • JESD-609 Code:

    e2

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA49,7X7,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Nom (Vsup):

    3.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN SILVER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

LP8765RLE/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the LP8765RLE/NOPB datasheet (section 10.2) and in the LP8765RLE/NOPB Evaluation Module User's Guide. The layout should prioritize thermal dissipation by placing the device near a thermal pad, using thermal vias, and keeping the copper pours away from the device.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. TI recommends using a low-ESR capacitor with a minimum capacitance of 10uF for most applications. The LP8765RLE/NOPB datasheet (section 7.3.1) provides a detailed capacitor selection guide.
  • The LP8765RLE/NOPB has an absolute maximum input voltage rating of 18V. However, the recommended operating input voltage range is 4.5V to 15V. Exceeding the absolute maximum rating can damage the device.
  • The LP8765RLE/NOPB output voltage can be configured using the FB (feedback) pin and an external resistor divider network. The datasheet (section 7.3.2) provides a detailed explanation of the output voltage configuration and calculation.
  • The EN pin is used to enable or disable the LP8765RLE/NOPB. When the EN pin is pulled high (above 1.4V), the device is enabled, and when pulled low (below 0.4V), the device is disabled. This pin can be used to implement power sequencing or to turn off the device during shutdown or low-power modes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LP8765RLE/NOPB Overview

Use the download button to access the LP8765RLE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP876, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
