LT1004IDG4-1-2 - Texas Instruments

Description: V-Ref Precision 1.235V 10mA 8-Pin SOIC Tube

Download LT1004IDG4-1-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

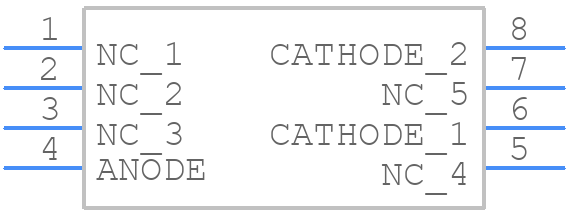

Symbol
LT1004IDG4-1-2 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LT1004IDG4-1-2 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LT1004IDG4-1-2 - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

LT1004IDG4-1-2 Details

  • Manufacturer Part Number:

    LT1004IDG4-1-2

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    1.239 V

  • Output Voltage-Min:

    1.231 V

  • Output Voltage-Nom:

    1.235 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.3%

  • Width:

    3.9 mm

LT1004IDG4-1-2 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common-mode choke or a ferrite bead to filter out high-frequency noise.
  • The LT1004IDG4-1-2 is stable with a wide range of output capacitors, but the recommended minimum capacitance is 10uF. To ensure stability, the output capacitor's ESR (Equivalent Series Resistance) should be less than 1 ohm. It's also recommended to use a capacitor with a low ESL (Equivalent Series Inductance) to minimize ringing.
  • The absolute maximum input voltage rating for the LT1004IDG4-1-2 is 15V, but it's recommended to operate the regulator with an input voltage no higher than 12V to ensure reliable operation and to prevent overheating.
  • The power dissipation of the LT1004IDG4-1-2 can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. It's recommended to ensure that the regulator's power dissipation is within the specified limits to prevent overheating.
  • The LT1004IDG4-1-2 has an operating junction temperature range of -40°C to 125°C, making it suitable for high-temperature applications. However, it's recommended to derate the output current and power dissipation at high temperatures to ensure reliable operation.
