LT1004IDRG4-1-2 - Texas Instruments

Description: Voltage References Micropwr Integr Prec Vltg Ref

Download LT1004IDRG4-1-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

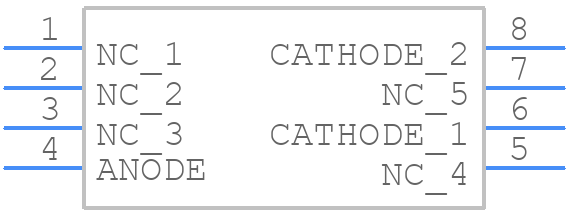

LT1004IDRG4-1-2 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LT1004IDRG4-1-2 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LT1004IDRG4-1-2 - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

LT1004IDRG4-1-2 Details

  • Manufacturer Part Number:

    LT1004IDRG4-1-2

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    1.239 V

  • Output Voltage-Min:

    1.231 V

  • Output Voltage-Nom:

    1.235 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.3%

  • Width:

    3.9 mm

LT1004IDRG4-1-2 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane and a separate analog ground plane to minimize noise and ensure optimal performance. Additionally, keep the input and output traces as short as possible and avoid routing them near noise sources.
  • To ensure stability, make sure to follow the recommended compensation network values and layout guidelines. Also, ensure that the output capacitor is properly sized and placed close to the output pin to minimize ringing and oscillations.
  • The maximum input voltage that can be applied to the LT1004IDRG4-1-2 is 36V, but it's recommended to operate within the specified input voltage range of 2.7V to 36V to ensure optimal performance and reliability.
  • The LT1004IDRG4-1-2 is rated for operation up to 125°C, but it's recommended to derate the output current and voltage as temperature increases to ensure reliability and prevent thermal shutdown.
  • To troubleshoot oscillations or instability, check the PCB layout for noise sources, ensure proper decoupling and bypassing, and verify that the compensation network values are correct. Also, check for any signs of overheating or thermal shutdown.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1004IDRG4-1-2 Overview

Use the download button to access the LT1004IDRG4-1-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT100, or try a keyword search, such as Voltage References
