LTC2962HUD#PBF - Analog Devices

Description: Supervisory Circuits +/-0.5% Quad Supervisor

Download LTC2962HUD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

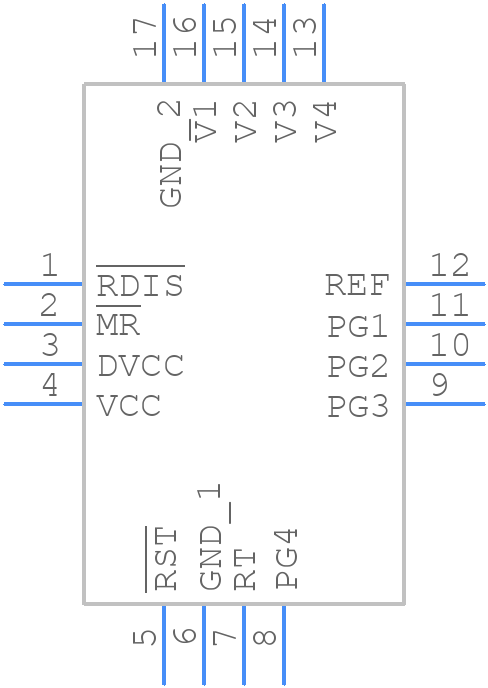

Symbol
LTC2962HUD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2962HUD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm)
click to zoom
3D Models
LTC2962HUD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm)
click to zoom

LTC2962HUD#PBF Details

  • Manufacturer Part Number:

    LTC2962HUD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1738

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-08-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2962HUD#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2962HUD#PBF involves keeping the input and output pins away from each other, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure accurate temperature measurement with the LTC2962HUD#PBF, it's essential to follow proper thermal design practices, such as using a thermally conductive material for the PCB, keeping the device away from heat sources, and using a thermocouple or other temperature sensor with a high accuracy rating. Additionally, calibration of the device may be necessary to achieve high accuracy temperature measurement.
  • The maximum current that the LTC2962HUD#PBF can handle is dependent on the specific application and the power supply used. However, according to the datasheet, the device can handle up to 1A of output current. It's essential to ensure that the power supply can provide the required current and that the device is operated within its recommended operating conditions to prevent overheating and damage.
  • The LTC2962HUD#PBF can be programmed using the I2C interface to set custom temperature ranges and alarm thresholds. The device has a built-in EEPROM that stores the configuration data, and the user can use the I2C interface to write to the EEPROM and configure the device. The datasheet provides detailed information on the programming protocol and the available configuration options.
  • The typical response time of the LTC2962HUD#PBF to changes in temperature is dependent on the specific application and the thermal design of the system. However, according to the datasheet, the device has a typical response time of 10ms to 30ms for a 10°C change in temperature. This response time can be affected by factors such as the thermal mass of the system, the thermal conductivity of the materials used, and the airflow around the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2962HUD#PBF Overview

Use the download button to access the LTC2962HUD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
