LTC2962IUD#PBF - Analog Devices

Description: ?0.5% Accurate Quad Configurable Supervisor

Download LTC2962IUD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

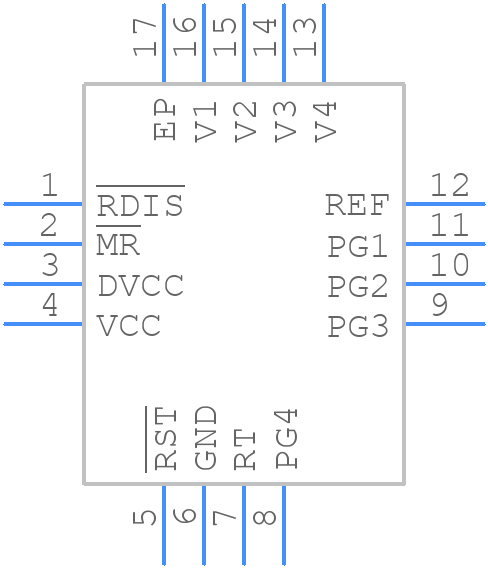

Symbol
LTC2962IUD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2962IUD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm) (Reference LTC DWG # 05-08-1691 Rev Ø)ss
click to zoom
3D Models
LTC2962IUD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm) (Reference LTC DWG # 05-08-1691 Rev Ø)ss
click to zoom

LTC2962IUD#PBF Details

  • Manufacturer Part Number:

    LTC2962IUD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1738

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-08-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2962IUD#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2962IUD involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing the device close to the battery. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN140 for more details.
  • To optimize the performance of the LTC2962IUD in a high-temperature environment, ensure good thermal conduction by using a heat sink or a thermal pad, and follow the recommended PCB layout. Also, consider using a thermistor to monitor the temperature and adjust the charging profile accordingly.
  • No, the LTC2962IUD is designed specifically for rechargeable batteries. Using it with a non-rechargeable battery may cause damage to the device or the battery.
  • The LTC2962IUD has a built-in overvoltage protection feature that can be enabled by connecting the OV pin to a voltage source. The device will shut down if the input voltage exceeds the programmed overvoltage threshold.
  • The maximum charging current that the LTC2962IUD can handle is 2A. However, the actual charging current may be limited by the battery's capacity and the system's power supply.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2962IUD#PBF Overview

Use the download button to access the LTC2962IUD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
