A good PCB layout for the LTC4364CMS-2#TRPBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
The input capacitor should have a low ESR and be rated for the maximum input voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The output capacitor should have a low ESR and be rated for the maximum output voltage. A ceramic capacitor with an X7R or X5R dielectric or a film capacitor is recommended. The capacitor values should be chosen based on the desired output ripple and transient response.
The maximum ambient temperature range for the LTC4364CMS-2#TRPBF is -40°C to 125°C. However, the device can operate up to 150°C with derating. It's essential to ensure that the device is operated within the recommended temperature range to ensure reliability and performance.
To troubleshoot issues with the LTC4364CMS-2#TRPBF, start by checking the input and output voltage levels, as well as the current drawn from the input. Verify that the input and output capacitors are properly selected and connected. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and current waveforms. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the LTC4364CMS-2#TRPBF is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified and meets the requirements for automotive and industrial applications. However, it's essential to ensure that the device is operated within the recommended temperature range and that the PCB design and manufacturing process meet the required standards for reliability and quality.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTC4364CMS-2#TRPBF Overview

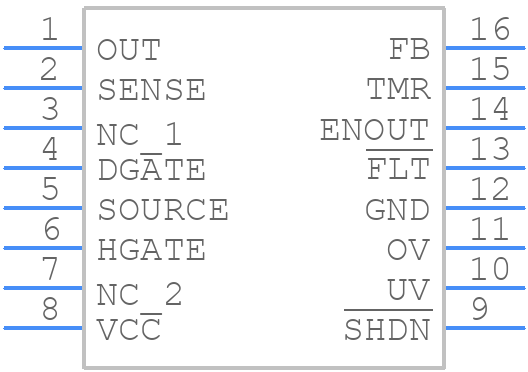

Use the download button to access the LTC4364CMS-2#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43,
or try a keyword search, such as Power Management Circuits
