LTC4364CS-2#TRPBF - Analog Devices

Description: Surge Stopper with Ideal Diode

Download LTC4364CS-2#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

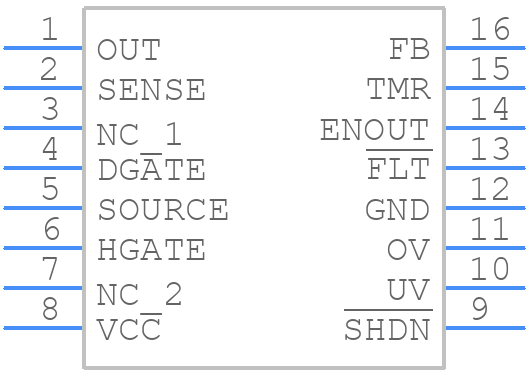

LTC4364CS-2#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4364CS-2#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)_2022
click to zoom
3D Models
LTC4364CS-2#TRPBF - Analog Devices - 3D model - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)_2022
click to zoom

LTC4364CS-2#TRPBF Details

  • Manufacturer Part Number:

    LTC4364CS-2#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1610 (S16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    VOUT RESET THRESHOLD VOLTAGE IS 2.2 VOLT

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.906 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max (Isup):

    0.75 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC4364CS-2#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4364CS-2#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of at least 10uF, while the output capacitor should be a low-ESR ceramic or film capacitor with a value of at least 22uF. The capacitor selection should be based on the specific application requirements, such as ripple current, voltage rating, and ESR.
  • The LTC4364CS-2#TRPBF has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. The device should be derated for high-temperature operation to ensure reliable performance.
  • To troubleshoot issues with the LTC4364CS-2#TRPBF, start by checking the input and output voltages, as well as the fault flags (OV, UV, and FAULT). Verify that the input and output capacitors are properly selected and connected. Check for any signs of overheating, such as excessive current draw or high junction temperature. Consult the datasheet and application notes for more detailed troubleshooting guidance.
  • Yes, the LTC4364CS-2#TRPBF is suitable for high-reliability and safety-critical applications, such as automotive, industrial, and medical devices. However, it is essential to follow proper design and testing procedures to ensure the device meets the specific application requirements and standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4364CS-2#TRPBF Overview

Use the download button to access the LTC4364CS-2#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
