MAX14575ALETA+T - Analog Devices

Description: Power Switch ICs - Power Distribution 250mA to 2.5A Adjustable Current-Limit Switches

Download MAX14575ALETA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

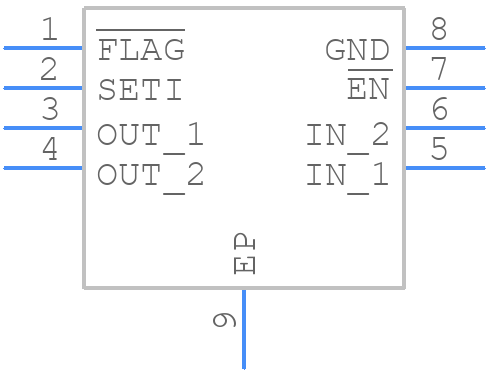

MAX14575ALETA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14575ALETA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T822+2
click to zoom
3D Models
MAX14575ALETA+T - Analog Devices - 3D model - Small Outline No-lead - T822+2
click to zoom

MAX14575ALETA+T Details

  • Manufacturer Part Number:

    MAX14575ALETA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-10-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    CURRENT LIMIT:2.75A; THERMAL SHUTDOWN:160C; ADJUSTABLE CURRENT LIMIT

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX14575ALETA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14575ALETA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • The MAX14575ALETA+T requires a single 3.3V power supply. It's recommended to power the device using a low-noise, low-dropout regulator. The power sequencing requirements are not critical, but it's recommended to power the device after the input signals are stable to prevent any unwanted behavior.
  • The MAX14575ALETA+T can support data rates up to 100Mbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal quality.
  • To troubleshoot issues with the MAX14575ALETA+T, start by verifying the power supply and input signals. Use an oscilloscope to check the signal integrity and timing. Also, review the PCB layout and ensure that it meets the recommended layout guidelines. If the issue persists, consult the datasheet and application notes for further guidance.
  • Yes, the MAX14575ALETA+T is a high-speed device and can be susceptible to EMI/EMC issues. To minimize these effects, use a shielded cable for the input signals, keep the device away from high-current carrying traces, and use a common-mode filter if necessary. Additionally, ensure that the PCB layout meets the recommended EMI/EMC guidelines.
