MAX14575BETA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX14575BETA+T - Power Load Switch, Active High, Adjustable Current Limit, 5.5 V, 250 mA to 2.5 A, 32 mohm, TDFN-8

Download MAX14575BETA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

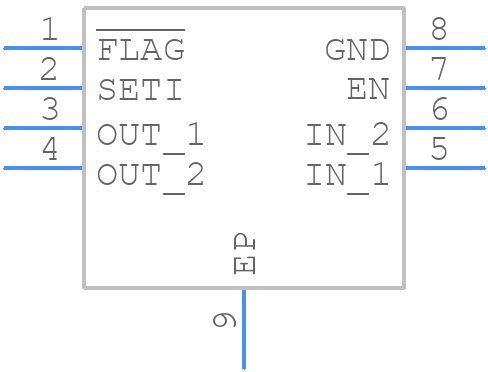

MAX14575BETA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14575BETA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T822+2
click to zoom
3D Models
MAX14575BETA+T - Analog Devices - 3D model - Small Outline No-lead - T822+2
click to zoom

MAX14575BETA+T Details

  • Manufacturer Part Number:

    MAX14575BETA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-10-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    CURRENT LIMIT:2.75A; THERMAL SHUTDOWN:160C; ADJUSTABLE CURRENT LIMIT

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX14575BETA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14575BETA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The choice of capacitors for the MAX14575BETA+T depends on the specific application and the desired level of performance. In general, it's recommended to use low-ESR capacitors with a capacitance value of 1uF to 10uF. X5R or X7R ceramic capacitors are good options. The capacitor selection should also consider the voltage rating, temperature range, and physical size.
  • The MAX14575BETA+T has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 150°C.
  • To troubleshoot issues with the MAX14575BETA+T, start by checking the power supply voltage, the input voltage, and the output voltage. Verify that the device is properly configured and that the capacitors are correctly connected. Use an oscilloscope to check for noise, ringing, or other anomalies on the output. If the issue persists, consult the datasheet and application notes for guidance.
  • The MAX14575BETA+T is a high-reliability device, but it's essential to follow proper design and manufacturing practices to ensure the device meets the required safety and reliability standards. Consult the datasheet and application notes for guidance on using the device in high-reliability or safety-critical applications.
