MAX14606EWL+T - Analog Devices

Description: Overvoltage Protectors with Reverse Bias Blocking, 9WLP

Download MAX14606EWL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

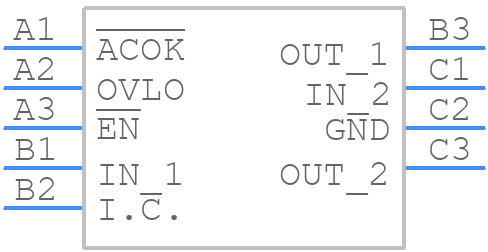

MAX14606EWL+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14606EWL+T - Analog Devices PCB footprint - BGA - BGA - W91B1+6
click to zoom
3D Models
MAX14606EWL+T - Analog Devices - 3D model - BGA - W91B1+6
click to zoom

MAX14606EWL+T Details

  • Manufacturer Part Number:

    MAX14606EWL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    9-WLCSP-N/A

  • Package Description:

    WLP-9

  • Pin Count:

    9

  • Manufacturer Package Code:

    9-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-01-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    OVERVOLTAGE DETECTOR

  • JESD-30 Code:

    S-PBGA-B9

  • Length:

    1.288 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max (Isup):

    0.12 mA

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.288 mm

MAX14606EWL+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14606EWL+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure proper power-up and configuration, it's recommended to follow a specific power-up sequence, which involves applying power to the device, waiting for the internal voltage regulator to stabilize, and then configuring the device through the I2C interface. The datasheet provides a detailed power-up sequence diagram and timing requirements.
  • The MAX14606EWL+T has an operating temperature range of -40°C to +125°C. While the device can operate within this range, its performance may be affected at extreme temperatures. For example, the device's accuracy and linearity may degrade at high temperatures, and its startup time may increase at low temperatures.
  • To troubleshoot issues with the MAX14606EWL+T, start by verifying the power supply and input voltage levels, then check the device's configuration and communication settings. Use a logic analyzer or oscilloscope to monitor the I2C bus and verify that the device is receiving the correct commands and data. If issues persist, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The MAX14606EWL+T is a high-reliability device that meets various industry standards and certifications, including AEC-Q100 for automotive applications and IEC 60730 for household appliances. However, it's essential to consult the datasheet and relevant application notes to ensure the device meets the specific requirements of your application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14606EWL+T Overview

Use the download button to access the MAX14606EWL+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
