Part Image

MAX14691ATP+ - Analog Devices

Description: Hot Swap Voltage Controllers 6A High Voltage Power Limiter with OVP/OCP

Download MAX14691ATP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

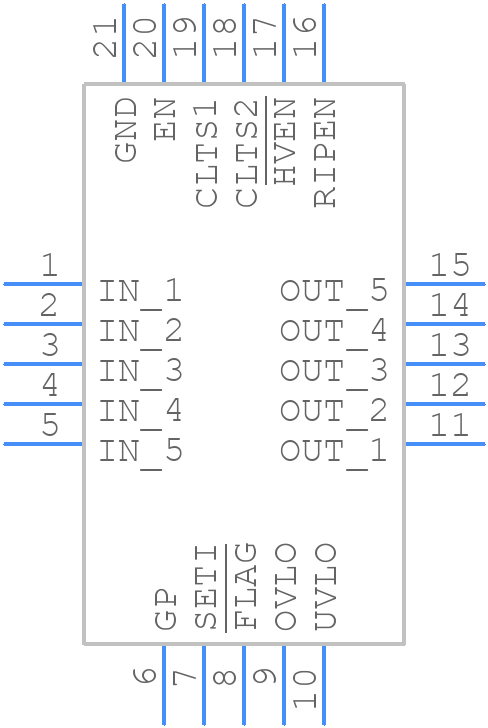

Symbol
MAX14691ATP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14691ATP+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2055+5C
click to zoom
3D Models
MAX14691ATP+ - Analog Devices - 3D model - Quad Flat No-Lead - T2055+5C
click to zoom

MAX14691ATP+ Details

  • Manufacturer Part Number:

    MAX14691ATP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-5X5X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2014-06-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    CURRENT LIMIT:6A; THERMAL SHUTDOWN:165C

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    5

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.2SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.9 mA

  • Supply Voltage-Max (Vsup):

    58 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +12V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX14691ATP+ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX14691ATP+. Ensure a solid ground plane, keep the input and output traces short and separate, and use a common-mode choke to reduce EMI. Refer to the MAX14691ATP+ evaluation board layout as a reference.
  • Choose input capacitors with low ESR and high ripple current rating. For output capacitors, select ones with low ESR and high capacitance. The datasheet recommends 10uF to 22uF capacitors for both input and output. However, the optimal value depends on the specific application and operating conditions.
  • The MAX14691ATP+ is rated for operation from -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device for high-temperature applications.
  • The MAX14691ATP+ is a surface-mount device and can be sensitive to vibration. Ensure the device is properly secured to the PCB using a robust mounting method, and consider adding mechanical dampening or vibration isolation to minimize the impact of vibrations.
  • Start by verifying the input voltage, output load, and PCB layout. Check for proper decoupling, correct component selection, and adequate thermal management. Use an oscilloscope to monitor the output voltage and current. Consult the datasheet and application notes for troubleshooting guidelines and consider seeking support from Analog Devices Inc. or a qualified engineer.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14691ATP+ Overview

Use the download button to access the MAX14691ATP+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
