MAX14745IEWX+T - Analog Devices

Description: Battery Management Wearable Charge Management Solution

Download MAX14745IEWX+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

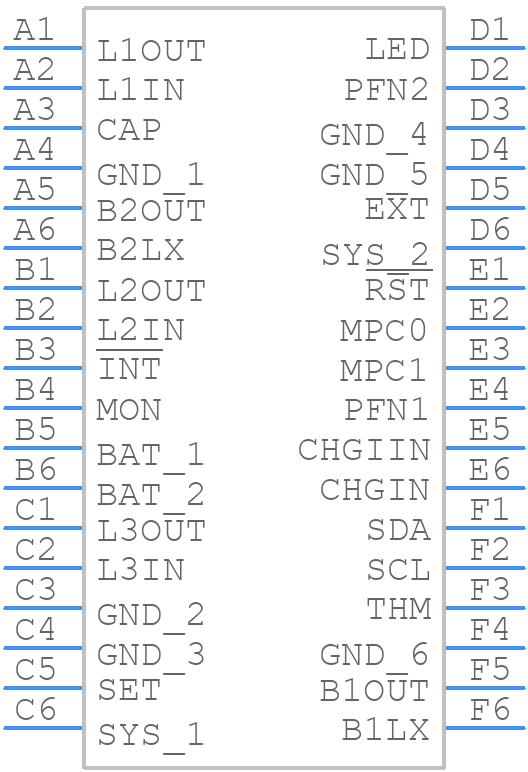

MAX14745IEWX+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14745IEWX+T - Analog Devices PCB footprint - BGA - BGA - W362D2+1
click to zoom
3D Models
MAX14745IEWX+T - Analog Devices - 3D model - BGA - W362D2+1
click to zoom

MAX14745IEWX+T Details

  • Manufacturer Part Number:

    MAX14745IEWX+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    36-WLCSP-N/A

  • Package Description:

    WLP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    36-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-10-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    R-PBGA-B36

  • Length:

    2.688 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA36,6X6,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.437 mm

MAX14745IEWX+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14745IEWX+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • The MAX14745IEWX+T requires a single 3.3V power supply. It's recommended to use a low-noise, low-dropout regulator (LDO) to power the device. The power sequencing requirements are not critical, but it's recommended to power up the device after the power supply has stabilized.
  • The MAX14745IEWX+T can support data rates up to 100Mbps, but the actual data rate achievable depends on the specific application, PCB layout, and noise environment.
  • The MAX14745IEWX+T is a general-purpose transceiver and can be configured for different communication protocols using external resistors and capacitors. The specific configuration depends on the protocol requirements and can be found in the application notes and design guides provided by Analog Devices.
  • The MAX14745IEWX+T has built-in ESD protection diodes on the input pins, which can withstand up to ±8kV of ESD voltage. Additionally, the device has latch-up protection circuitry to prevent damage from overvoltage conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14745IEWX+T Overview

Use the download button to access the MAX14745IEWX+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
