MAX147BEAP+ - Analog Devices

Description: Maxim MAX147BEAP+, 12-bit Serial ADC 8-Channel Pseudo Differential, Single Ended Input, 20-Pin SSOP

Download MAX147BEAP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

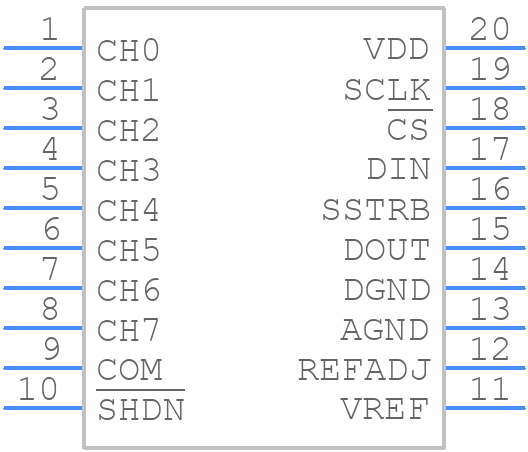

MAX147BEAP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX147BEAP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20 SSOP
click to zoom
3D Models
MAX147BEAP+ - Analog Devices - 3D model - Small Outline Packages - 20 SSOP
click to zoom

MAX147BEAP+ Details

  • Manufacturer Part Number:

    MAX147BEAP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-SSOP-5.3_MM

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1997-06-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    1.25 V

  • Analog Input Voltage-Min:

    -1.25 V

  • Conversion Time-Max:

    65 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.133 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.99 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX147BEAP+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX147BEAP+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and interference.
  • To optimize the performance of the MAX147BEAP+ in a noisy environment, use a low-pass filter on the input signals, add a ferrite bead or a common-mode choke to the power supply lines, and use shielding or a metal enclosure to reduce electromagnetic interference (EMI).
  • The maximum operating temperature range for the MAX147BEAP+ is -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to operate it within a temperature range of -20°C to +85°C for optimal performance.
  • Yes, the MAX147BEAP+ can be used in a battery-powered device. However, it's essential to consider the device's power consumption and shutdown modes to minimize power drain and extend battery life. The device has a low-power shutdown mode that can be used to reduce power consumption when not in use.
  • To troubleshoot common issues with the MAX147BEAP+, check the power supply voltage, ensure proper grounding and shielding, and verify the input signal integrity. Also, check for any layout or routing issues that may be causing noise or interference. Use an oscilloscope or a logic analyzer to debug the device's operation and identify any issues.
