MAX1480ECCPI+ - Analog Devices

Description: ±15kV ESD-Protected, Isolated RS-485/RS-422 Data Interfaces

Download MAX1480ECCPI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

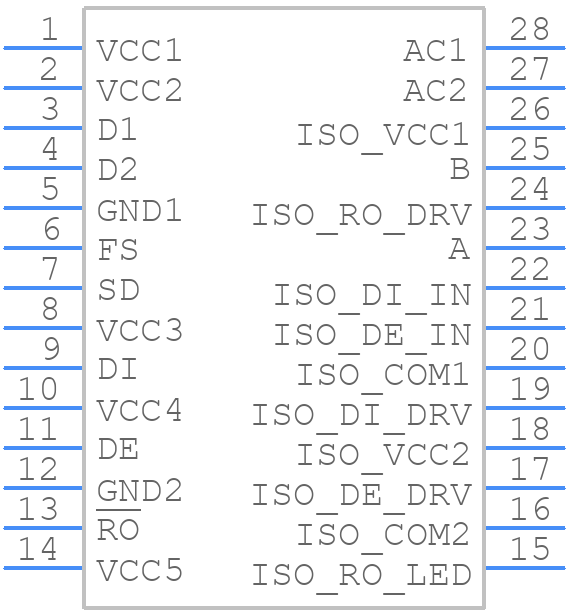

MAX1480ECCPI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

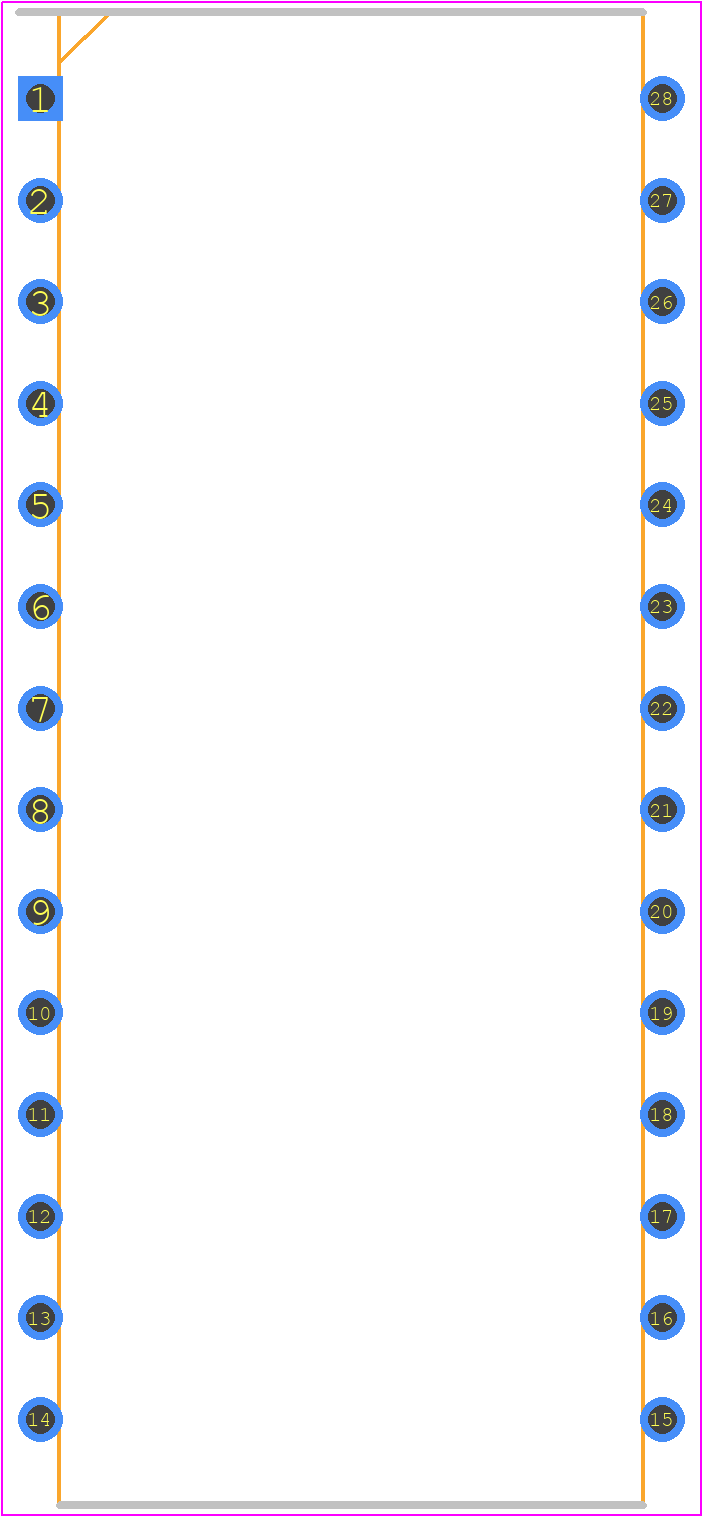

MAX1480ECCPI+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28 Wide Plastic DIP
click to zoom
3D Models
MAX1480ECCPI+ - Analog Devices - 3D model - Dual-In-Line Packages - 28 Wide Plastic DIP
click to zoom

MAX1480ECCPI+ Details

  • Manufacturer Part Number:

    MAX1480ECCPI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-PDIP-600_MIL

  • Package Description:

    PLASTIC, DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-PDIP-600_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-10-31

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e3

  • Length:

    36.83 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    225 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    275 ns

  • Width:

    15.24 mm

MAX1480ECCPI+ Frequently Asked Questions (FAQs)

  • The MAX1480ECCPI+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce EMI.
  • To optimize the MAX1480ECCPI+ for low power consumption, ensure that the input signals are properly terminated, use the lowest possible supply voltage, and minimize the output load capacitance. Additionally, consider using the shutdown mode to reduce power consumption when the device is not in use.
  • The MAX1480ECCPI+ is rated for operation over the industrial temperature range of -40°C to +85°C. However, it is recommended to derate the device's performance and power consumption at higher temperatures to ensure reliable operation.
  • The MAX1480ECCPI+ is a surface-mount device and can be susceptible to vibration-induced failures. To ensure reliable operation in high-vibration environments, it is recommended to use a robust PCB design, secure the device with a suitable adhesive, and consider using a vibration-dampening material.
  • Common issues with the MAX1480ECCPI+ include output signal distortion, input signal attenuation, and device overheating. To troubleshoot these issues, check the input signal quality, ensure proper device termination, and verify the power supply voltage and current. Use an oscilloscope to analyze the output signal and identify any anomalies.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1480ECCPI+ Overview

Use the download button to access the MAX1480ECCPI+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
