MAX14852GWE+T - Analog Devices

Description: 2.75kVRMS Isolated 500kbps/25Mbps Full-Duplex RS-485/RS-422 Transceivers with ±35kV ESD Protection

Download MAX14852GWE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

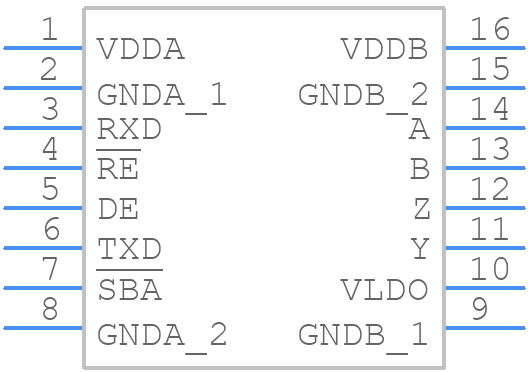

MAX14852GWE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14852GWE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W16M+8
click to zoom
3D Models
MAX14852GWE+T - Analog Devices - 3D model - Small Outline Packages - W16M+8
click to zoom

MAX14852GWE+T Details

  • Manufacturer Part Number:

    MAX14852GWE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-11-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.004 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    1040 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    12.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    240 ns

  • Width:

    7.5 mm

MAX14852GWE+T Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in the MAX14852 evaluation kit documentation, which includes guidelines for component placement, routing, and thermal management. Following this guide can ensure optimal performance and minimize electromagnetic interference (EMI).
  • Analog Devices provides application notes and design guides that provide configuration guidelines for specific applications. Additionally, the MAX14852 evaluation kit documentation includes example configurations and code snippets to help engineers get started with their design.
  • The MAX14852GWE+T is specified to operate from -40°C to +125°C. Operating temperature affects the device's performance, such as increased power consumption and reduced accuracy at higher temperatures. Analog Devices provides thermal management guidelines to help engineers design and operate the device within the specified temperature range.
  • Analog Devices provides troubleshooting guides and FAQs on their website, which cover common issues and provide step-by-step troubleshooting procedures. Additionally, the MAX14852 evaluation kit documentation includes a troubleshooting section that provides guidance on identifying and resolving common issues.
  • Analog Devices recommends using a combination of decoupling capacitors and filtering techniques, such as RC filters or ferrite beads, to minimize power supply noise and ensure reliable operation. The MAX14852 evaluation kit provides guidelines for power supply decoupling and filtering.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14852GWE+T Overview

Use the download button to access the MAX14852GWE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
