MAX14853GWE+ - Analog Devices

Description: 2.75kVRMS Isolated 500kbps/25Mbps Full-DuplexRS-485/RS-422 Transceivers with ±35kV ESDProtection and Integrated Transformer Driver

Download MAX14853GWE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

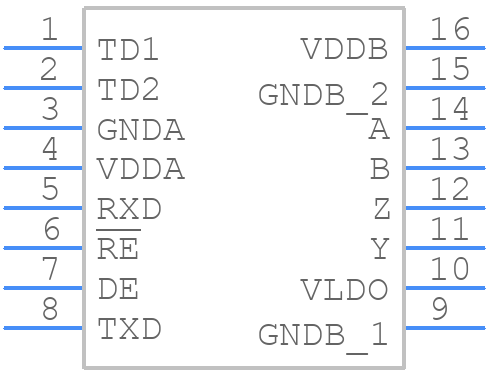

MAX14853GWE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14853GWE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-SOIC_W-300_MIL
click to zoom
3D Models
MAX14853GWE+ - Analog Devices - 3D model - Small Outline Packages - 16-SOIC_W-300_MIL
click to zoom

MAX14853GWE+ Details

  • Manufacturer Part Number:

    MAX14853GWE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2015-06-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LINE TRANSCEIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX14853GWE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX14853GWE+ can be found in the MAX14853 evaluation kit documentation, which is available on the Analog Devices website. The layout should prioritize signal integrity, minimize noise, and ensure proper thermal management.
  • To optimize the MAX14853GWE+ for low-power operation, ensure that the device is operated within the recommended voltage range, reduce the clock frequency, and use the power-down mode when not transmitting data. Additionally, consider using a low-power mode for the microcontroller or processor that interfaces with the MAX14853GWE+.
  • The maximum cable length supported by the MAX14853GWE+ depends on the specific application and the type of cable used. As a general guideline, the MAX14853GWE+ can support cable lengths up to 100 meters for RS-485 and up to 50 meters for RS-232. However, it is recommended to consult the datasheet and application notes for specific guidance on cable length and termination.
  • To troubleshoot common issues with the MAX14853GWE+, start by verifying the power supply and clock signals. Check for proper termination and cable connections. Ensure that the device is properly configured and that the baud rate is set correctly. Use a logic analyzer or oscilloscope to debug the signal integrity and timing issues.
  • The MAX14853GWE+ is a 3.3V device, but it is 5V tolerant on the digital input pins. However, it is recommended to use a level translator or voltage regulator to ensure that the input signals are within the recommended voltage range to prevent damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14853GWE+ Overview

Use the download button to access the MAX14853GWE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
