MAX14946EWE+ - Analog Devices

Description: 2.75kVRMS Isolated 500kbps Half-Duplex RS-485/RS-422 Transceiver with ±30kV ESD Protection and Integrated Transformer Driver

Download MAX14946EWE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

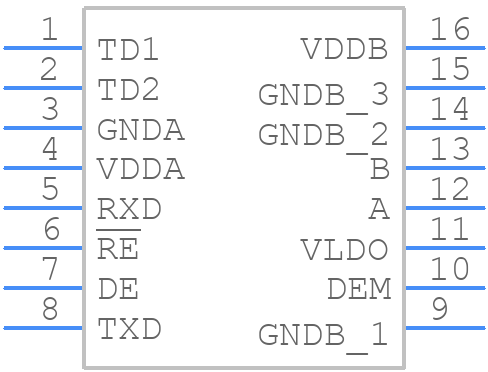

MAX14946EWE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX14946EWE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Wide SOIC
click to zoom
3D Models
MAX14946EWE+ - Analog Devices - 3D model - Small Outline Packages - 16 Wide SOIC
click to zoom

MAX14946EWE+ Details

  • Manufacturer Part Number:

    MAX14946EWE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-02-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485; EIA-422

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.004 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Receive Delay-Max:

    240 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    12.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    1040 ns

  • Width:

    7.5 mm

MAX14946EWE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX14946EWE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces between the device and the power supply.
  • To ensure reliable communication, make sure to use a proper SPI interface configuration, including correct clock polarity and phase, and a suitable clock frequency. Also, ensure that the microcontroller's SPI pins are 5V tolerant, and use a level translator if necessary. Additionally, implement error checking and handling mechanisms in your firmware to detect and recover from communication errors.
  • The maximum cable length supported by the MAX14946EWE+ depends on the specific application and the type of cable used. As a general guideline, the device can support cable lengths up to 10 meters at a data rate of 100 kbps. However, it's recommended to perform signal integrity analysis and testing to determine the maximum cable length for your specific application.
  • To ensure proper operation, it's recommended to power up the MAX14946EWE+ after the power supply has stabilized, and to power down the device before the power supply is turned off. Additionally, ensure that the power-up and power-down sequences are slow enough to prevent voltage spikes and glitches that could damage the device.
  • The MAX14946EWE+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device's junction temperature below 120°C. This can be achieved by using a heat sink, improving air flow, and reducing the power consumption of the device. Additionally, ensure that the device is not exposed to extreme temperatures during storage or operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX14946EWE+ Overview

Use the download button to access the MAX14946EWE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
