MAX1496EPI+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX1496EPI+ - Display Drive AD Converter, LED Display, 3.5 Digits, 5 SPS, Differential, Single, 2.7 V

Download MAX1496EPI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

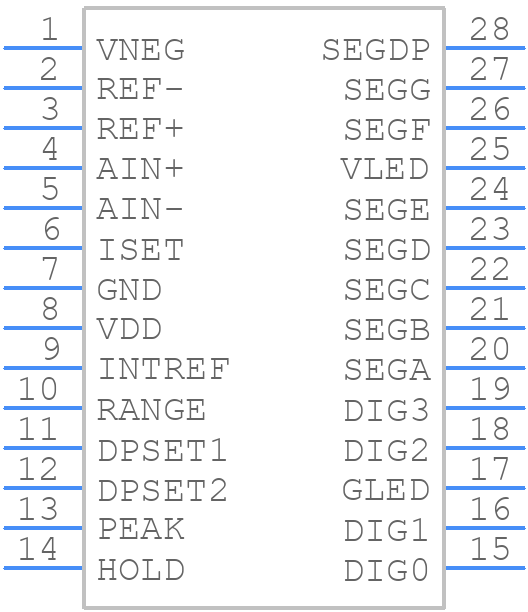

MAX1496EPI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

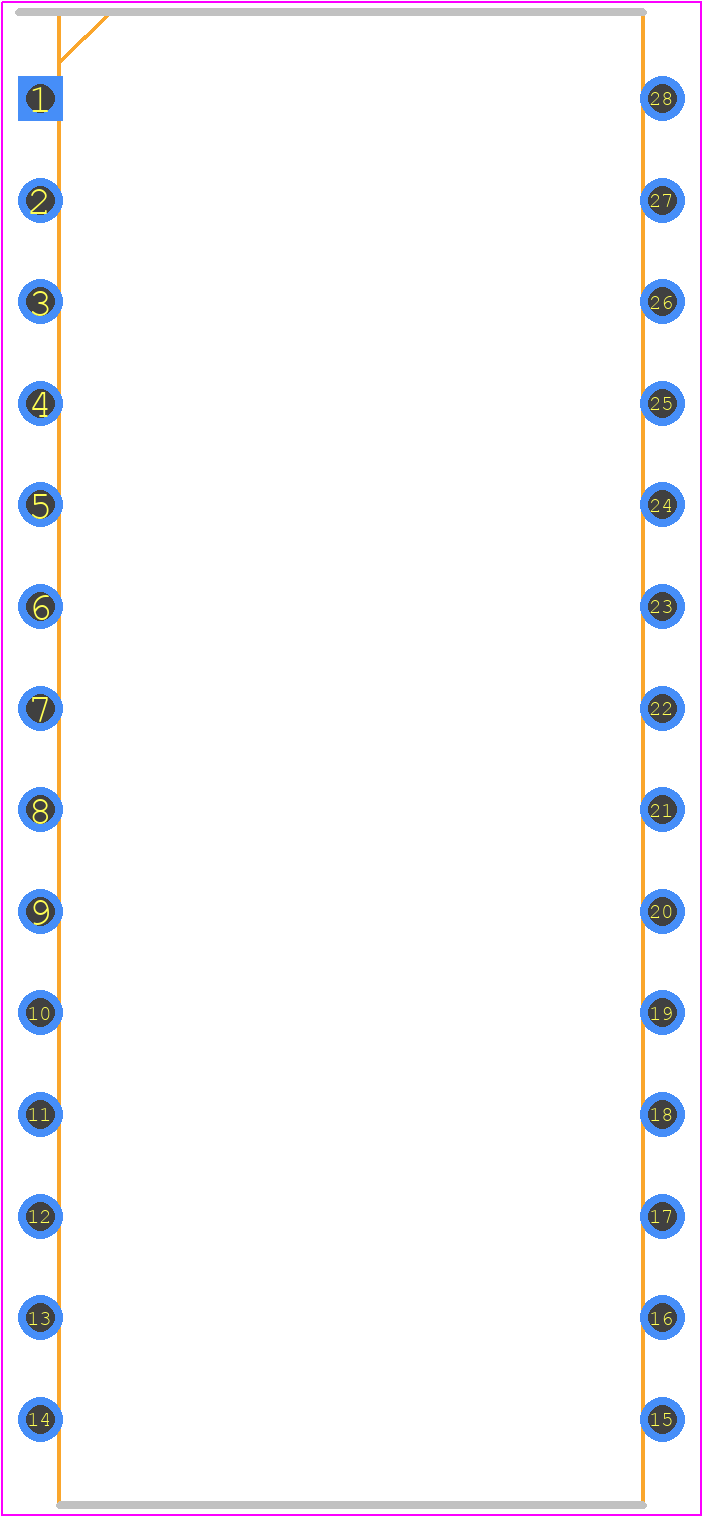

MAX1496EPI+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28 PDIP_2021
click to zoom
3D Models
MAX1496EPI+ - Analog Devices - 3D model - Dual-In-Line Packages - 28 PDIP_2021
click to zoom

MAX1496EPI+ Details

  • Manufacturer Part Number:

    MAX1496EPI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-PDIP-600_MIL

  • Package Description:

    0.600 MM, PLASTIC, MS-011, DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-PDIP-600_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2004-03-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e3

  • Length:

    36.83 mm

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    0.774 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15.24 mm

MAX1496EPI+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX1496EPI+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the external components. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure the reliability of the MAX1496EPI+ in high-temperature applications, it's essential to follow proper thermal management techniques. This includes using a heat sink, ensuring good airflow, and keeping the junction temperature below the maximum rated temperature. Additionally, it's recommended to derate the device's power dissipation according to the ambient temperature and to use a thermally conductive material for the PCB.
  • The recommended input voltage range for the MAX1496EPI+ is 2.7V to 5.5V. However, the device can operate down to 2.4V with some performance degradation. It's essential to ensure that the input voltage is within the recommended range to ensure proper operation and to prevent damage to the device.
  • To troubleshoot issues with the MAX1496EPI+, start by checking the power supply voltage, ensuring that it's within the recommended range. Next, verify that the input signals are within the specified range and that the output loads are within the recommended range. Use an oscilloscope to check the output waveforms and to identify any anomalies. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Analog Devices' technical support.
  • Yes, the MAX1496EPI+ can be used in a 3.3V system. The device is specified to operate from 2.7V to 5.5V, making it suitable for 3.3V systems. However, it's essential to ensure that the input signals and output loads are within the recommended range to ensure proper operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1496EPI+ Overview

Use the download button to access the MAX1496EPI+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
