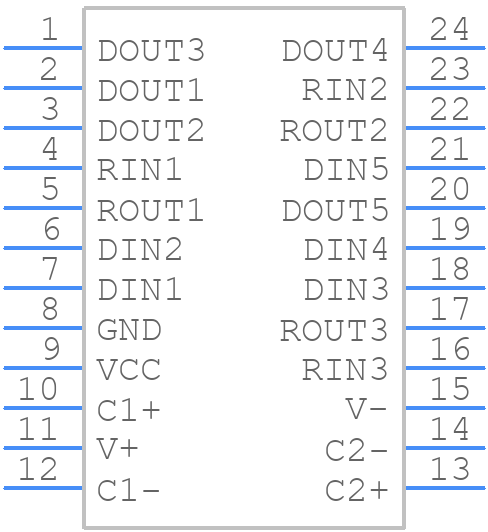

MAX207CDW - Texas Instruments

MAX207CDW Details

• Manufacturer Part Number:

  MAX207CDW

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  SOIC-24

• Pin Count:

  24

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Differential Output:

  NO

• Driver Number of Bits:

  5

• High Level Input Current-Max:

  0.0002 A

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-232-F; TIA-232-F; V.28

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e4

• Length:

  15.4 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  3

• Number of Terminals:

  24

• Operating Temperature-Max:

  70 °C

• Out Swing-Min:

  10 V

• Output Low Current-Max:

  0.0016 A

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP24,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Receive Delay-Max:

  10000 ns

• Receiver Number of Bits:

  3

• Seated Height-Max:

  2.65 mm

• Supply Current-Max:

  20 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  5.5 V

• Supply Voltage1-Min:

  4.5 V

• Supply Voltage1-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transmit Delay-Max:

  10000 ns

• Width:

  7.5 mm
