Part Image

MAX213IDWR - Texas Instruments

Description: 5-V Multichannel RS-232 Line Driver/Receiver with 15-kV ESD Protection

Download MAX213IDWR Model

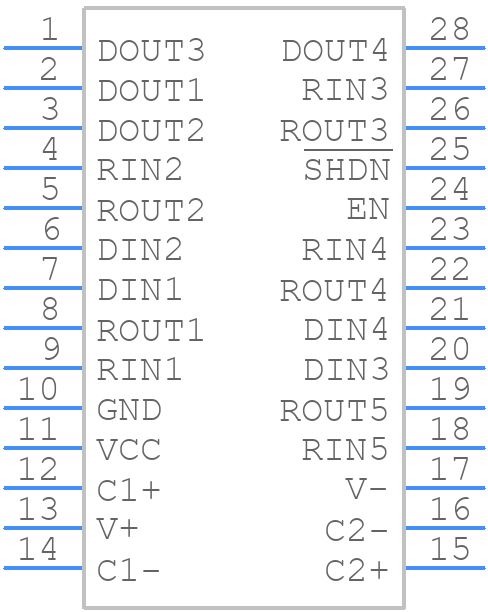

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX213IDWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G28)
click to zoom
3D Models
MAX213IDWR - Texas Instruments  - 3D model - Small Outline Packages - DW (R-PDSO-G28)
click to zoom

MAX213IDWR Details

  • Manufacturer Part Number:

    MAX213IDWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-28

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    NO

  • Driver Number of Bits:

    4

  • High Level Input Current-Max:

    0.00001 A

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-F; TIA-232-F; V.28

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    2 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    40000 ns

  • Receiver Number of Bits:

    5

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    10000 ns

  • Width:

    7.5 mm

MAX213IDWR Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the MAX213IDWR is 1.4W at 25°C ambient temperature, but it can be derated to 0.8W at 85°C ambient temperature.
  • To ensure the MAX213IDWR is in a stable operating condition during power-up, make sure the input voltage rises monotonically and the input voltage is above 2.7V before the enable pin is asserted.
  • To minimize EMI, it is recommended to place the MAX213IDWR close to the power source, use a solid ground plane, and keep the input and output traces as short as possible. Additionally, use a shielded inductor and place it as close to the device as possible.
  • The output voltage ripple of the MAX213IDWR can be calculated using the following formula: ΔVout = (IL * ESL * fsw) / (Cout * Vout), where IL is the output current, ESL is the equivalent series inductance of the output capacitor, fsw is the switching frequency, Cout is the output capacitance, and Vout is the output voltage.
  • The recommended input capacitor type for the MAX213IDWR is a ceramic capacitor with a voltage rating of at least 10V and a capacitance value of 10uF to 22uF.
