Texas Instruments recommends a layout that minimizes the distance between the MAX3221EIPWE4 and the UART signals, and uses a solid ground plane to reduce noise. Additionally, it's recommended to place the device close to the UART connector and use short, direct traces to connect the device to the UART signals.
The MAX3221EIPWE4 can operate from a single 1.8V to 5.5V supply, but it's recommended to use a voltage regulator to ensure a stable supply voltage. Additionally, the device can tolerate a 10% variation in the supply voltage, but it's recommended to use a voltage regulator with a tighter tolerance to ensure reliable operation.
The MAX3221EIPWE4 can support data rates up to 1 Mbps, but the actual data rate may be limited by the UART signals and the system design. It's recommended to consult the UART datasheet and the system design requirements to determine the maximum data rate that can be supported.
To ensure reliable operation in noisy environments, it's recommended to use a solid ground plane, decouple the power supply with capacitors, and use shielding or twisted pairs for the UART signals. Additionally, the MAX3221EIPWE4 has built-in ESD protection and can tolerate up to ±15kV of ESD, but it's still recommended to use ESD protection devices in the system design.
Yes, the MAX3221EIPWE4 can be used in a multi-point or multi-drop configuration, but it's recommended to use a common ground plane and to ensure that the UART signals are properly terminated to prevent signal reflections and noise. Additionally, the device can be used in a star or bus configuration, but it's recommended to consult the system design requirements to determine the best configuration.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAX3221EIPWE4 Overview

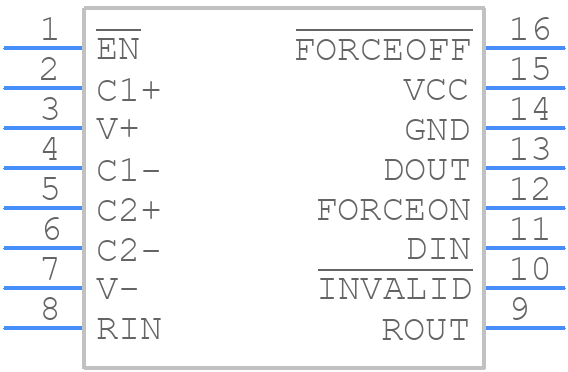

Use the download button to access the MAX3221EIPWE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX32,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
