Texas Instruments recommends a specific layout and placement for the MAX3318IPWR to ensure optimal performance and minimize noise. This includes keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power supply. Refer to the application note 'MAX3318 Layout and Placement Guidelines' for more information.
The MAX3318IPWR has a thermal pad that must be connected to a solid ground plane to dissipate heat. Ensure that the PCB has a thermal relief pattern under the device, and consider using thermal vias to improve heat dissipation. Additionally, keep the device away from other heat sources and ensure good airflow around the device.
The recommended input capacitance for the MAX3318IPWR is 10nF to 100nF. This capacitance helps to filter out high-frequency noise and improve the device's power supply rejection ratio (PSRR). However, the optimal input capacitance value may vary depending on the specific application and noise environment.
The MAX3318IPWR is rated for operation up to 85°C, but it can be used in higher temperature environments with some derating. Consult the datasheet for the device's thermal derating curve, and ensure that the device is properly heatsinked and cooled to prevent overheating.
To troubleshoot issues with the MAX3318IPWR, start by checking the device's input and output voltages, as well as the current consumption. Use an oscilloscope to check for noise and oscillations on the output. Also, verify that the device is properly powered and that the input voltage is within the recommended range. Consult the datasheet and application notes for more troubleshooting tips.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAX3318IPWR Overview

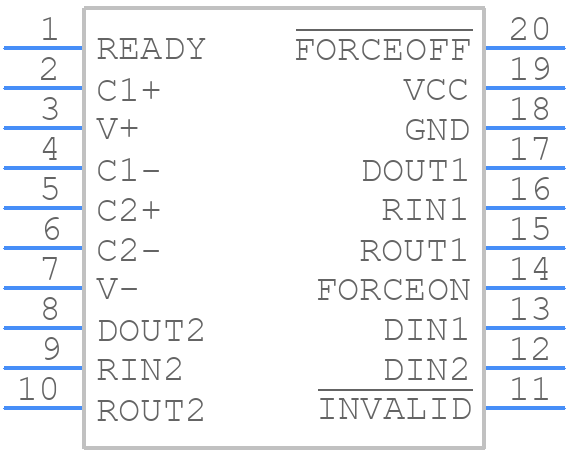

Use the download button to access the MAX3318IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX33,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
