Description:Can Efficiently Control Brush DC Motors with External MOSFET H-Bridge; Fully Accessible Err Amplifier for Closed Loop Servo Applications; 10 to 30 V Operation; 6.25 V Reference Capable of Supplying Sensor Power; Selectable 60° /300° or 120° /240° Sensor Phasings; Cycle-By-Cycle Current Limiting; Undervoltage Lockout; Internal Thermal Shutdown; Pinned-Out Current Sense Reference; High Current Drivers Can Control External 3-Phase MOSFET Bridge
A good PCB layout for the MC33035DWG involves keeping the input and output traces short and separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input voltage is within the recommended range, and the output is properly decoupled. Additionally, a minimum ESR of 1 ohm is recommended for the output capacitor.
The MC33035DWG is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design. A thermal analysis should be performed to ensure the device operates within its specified temperature range.
Yes, the MC33035DWG is suitable for high-reliability applications. It is manufactured using a high-reliability process, and it has undergone rigorous testing to ensure its performance and reliability. However, it is essential to follow the recommended design and manufacturing guidelines to ensure the device meets the required reliability standards.
To troubleshoot issues with the MC33035DWG, start by verifying the input voltage and current, and ensuring that the device is properly decoupled. Check the output voltage and current, and verify that the device is operating within its specified temperature range. If the issue persists, consult the datasheet and application notes for guidance, or contact onsemi's technical support team.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC33035DWG Overview

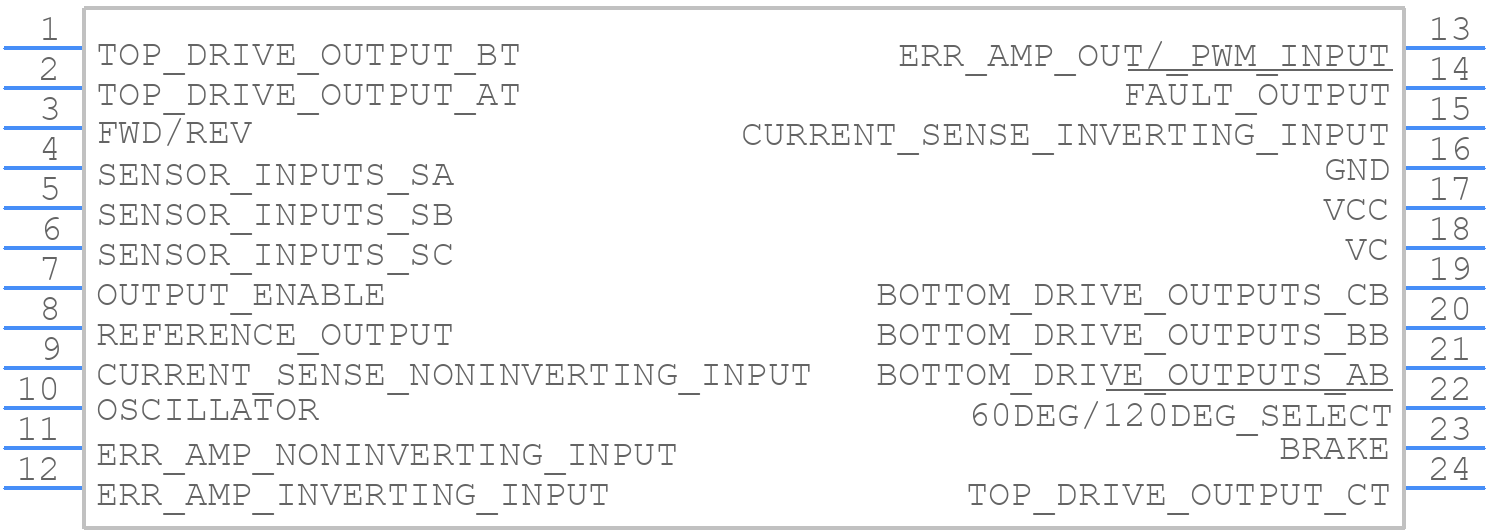

Use the download button to access the MC33035DWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC330,
or try a keyword search, such as Motion Control Electronics
