Part Image

MC33035P - onsemi

Description: Obsolete - Brushless DC Motor Controller

Download MC33035P Model

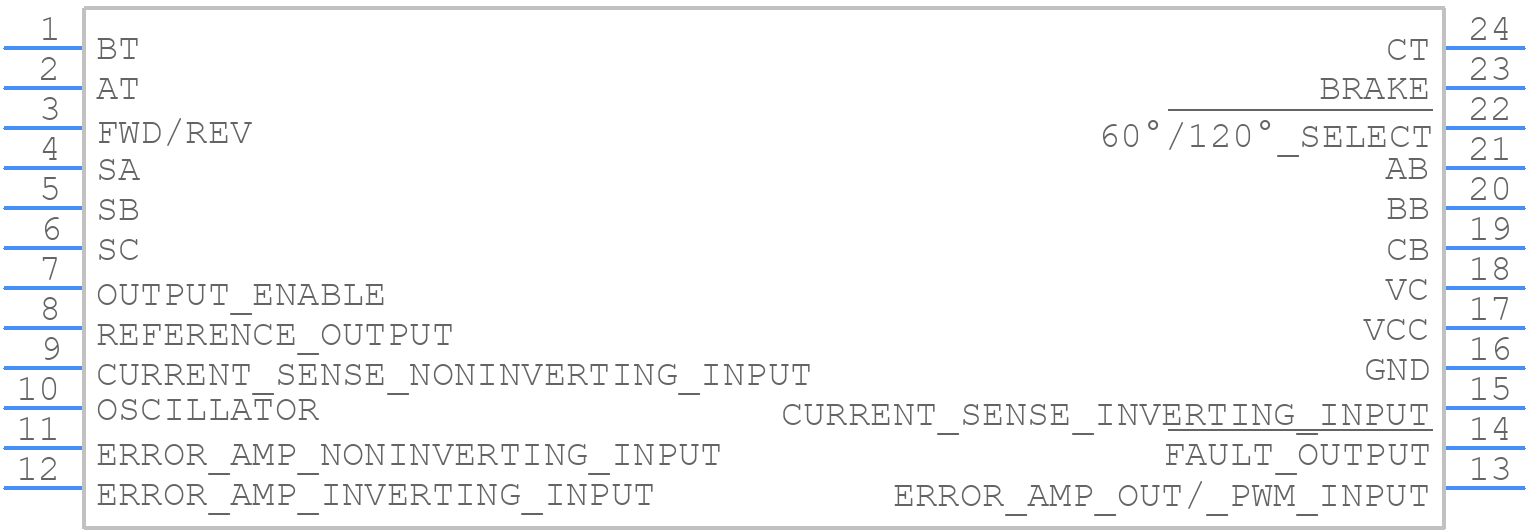

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

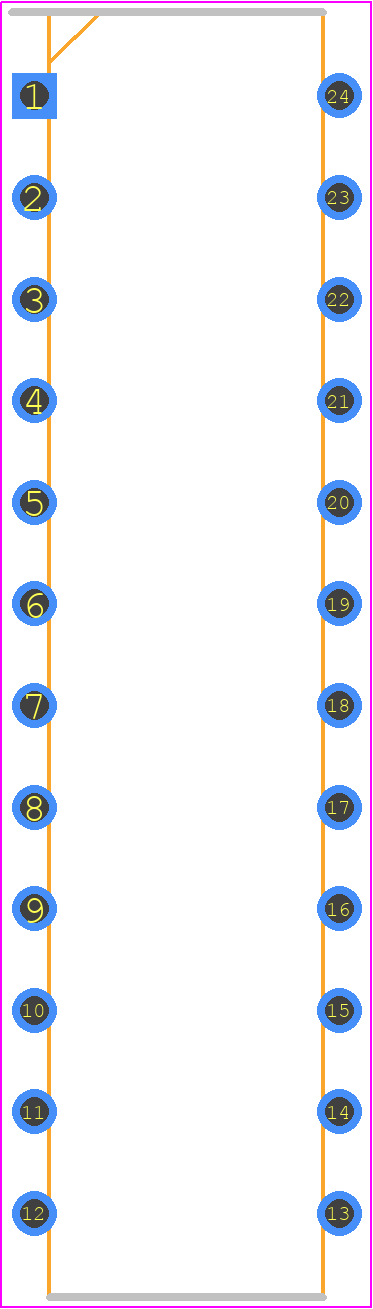

MC33035P - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - MC33035P-1
click to zoom
3D Models
MC33035P - onsemi  - 3D model - Dual-In-Line Packages - MC33035P-1
click to zoom

MC33035P Details

  • Manufacturer Part Number:

    MC33035P

  • Brand Name:

    onsemi

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    24 LEAD PDIP

  • Package Description:

    PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    724-03

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    1-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e0

  • Length:

    31.69 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.01 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    235

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.4 mm

  • Supply Current-Max (Isup):

    20 mA

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Supply Voltage-Nom (Vsup):

    20 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MC33035P Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33035P involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded inductor and to keep the switching node (pin 5) away from sensitive analog circuits.
  • The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet (e.g., 10uH). Then, adjust the value based on the specific application requirements, such as output current and ripple voltage.
  • The maximum output current of the MC33035P is 3A. However, the actual output current may be limited by the input voltage, output voltage, and inductor value. It's recommended to check the thermal performance and efficiency of the converter at the desired output current.
  • The internal voltage reference of the MC33035P has a tolerance of ±2%. To compensate for this tolerance, it's recommended to use an external voltage reference or to adjust the output voltage using a resistive divider network.
  • The EN pin is used to enable or disable the converter. When the EN pin is high, the converter is enabled, and when it's low, the converter is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes.
