A good PCB layout for the MC33035PG involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure stability, use a minimum output capacitance of 10uF, keep the output capacitor's ESR below 1 ohm, and avoid using capacitors with high ESR or ESL. Also, ensure the input voltage is within the recommended range.
Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent overheating.
Use the formula: Power Dissipation (PD) = (Vin - Vout) x Iout. Then, calculate the junction temperature (TJ) using the thermal resistance (RθJA) and PD: TJ = TA + (RθJA x PD), where TA is the ambient temperature.
The MC33035PG is rated for operation up to 125°C, but it's essential to consider the derating curves and thermal management to ensure reliable operation in high-temperature environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC33035PG Overview

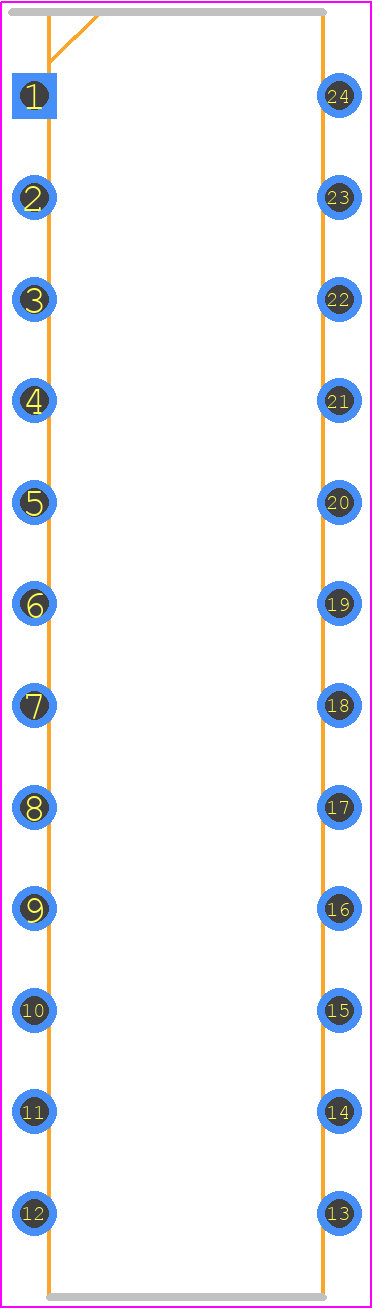

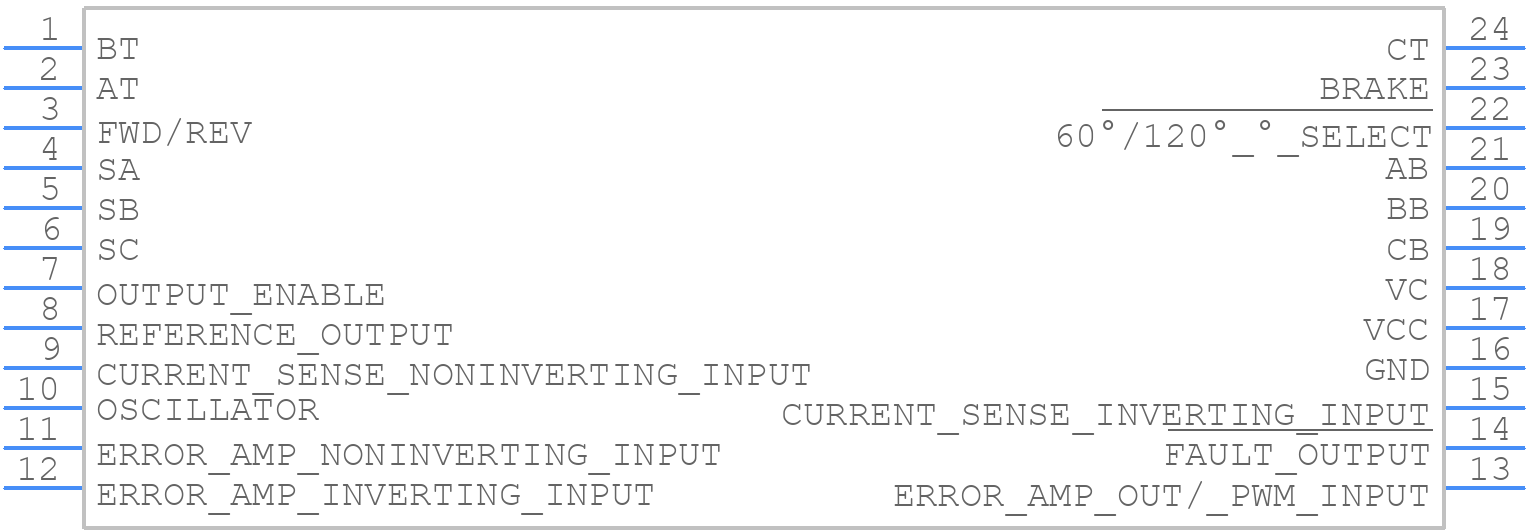

Use the download button to access the MC33035PG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC330,
or try a keyword search, such as Motion Control Electronics
