Description:Comparator Hysteresis Prevents Erratic Reset; Low Standby Current; Internal Clamp Diode for Discharging Delay Capacitor; Trimmed-In-Package Temperature Compensated Reference; Comparator Threshold of 4.6 V at 25° C; Guaranteed Reset Operation with 1.0 V Input; Economical TO-226AA, SO-8, Micro-8 and SOT-23/TSOP-5 Surface Mount Packages; Reset Output Capable of Sinking in Excess of 10 mA; Precise Comparator Thresholds Guaranteed Over Temperature; Pb-Free Packages are Available
A good PCB layout for the MC33064D-5R2G involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a minimum of 10uF capacitance is recommended at the output.
The MC33064D-5R2G is rated for operation from -40°C to +125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
Yes, the MC33064D-5R2G is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high performance and low defect rates. However, it is essential to follow proper design and manufacturing guidelines to ensure the device's reliability.
To troubleshoot issues with the MC33064D-5R2G, start by checking the input and output voltages, and ensure that the device is properly powered. Check for any signs of overheating, and verify that the PCB layout and component values meet the recommended guidelines. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC33064D-5R2G Overview

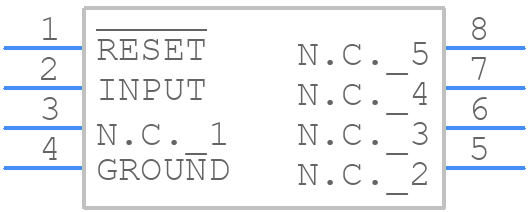

Use the download button to access the MC33064D-5R2G schematic symbol, PCB footprint, and 3D model.
