Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good thermal design practices, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct to the heat sink or chassis.
To ensure reliable operation in high-temperature environments, follow the recommended operating conditions, use a suitable heat sink, and consider using thermal interface materials. Additionally, ensure that the device is properly soldered and that the PCB is designed to minimize thermal resistance.
Operating the device at the maximum TJ of 150°C can reduce its lifespan and reliability. It's recommended to operate the device at a lower temperature, typically below 125°C, to ensure optimal performance and longevity.
The MCF8315C1VQRGFRQ1 has specific power sequencing requirements to prevent damage or malfunction. Ensure that the power supplies are sequenced correctly, and the device is powered up and down according to the recommended sequence in the datasheet.
To mitigate EMI and RFI, follow good design practices, such as using a solid ground plane, placing components carefully, and using shielding or filtering components as needed. Additionally, ensure that the device is properly decoupled and that the PCB is designed to minimize radiation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCF8315C1VQRGFRQ1 Overview

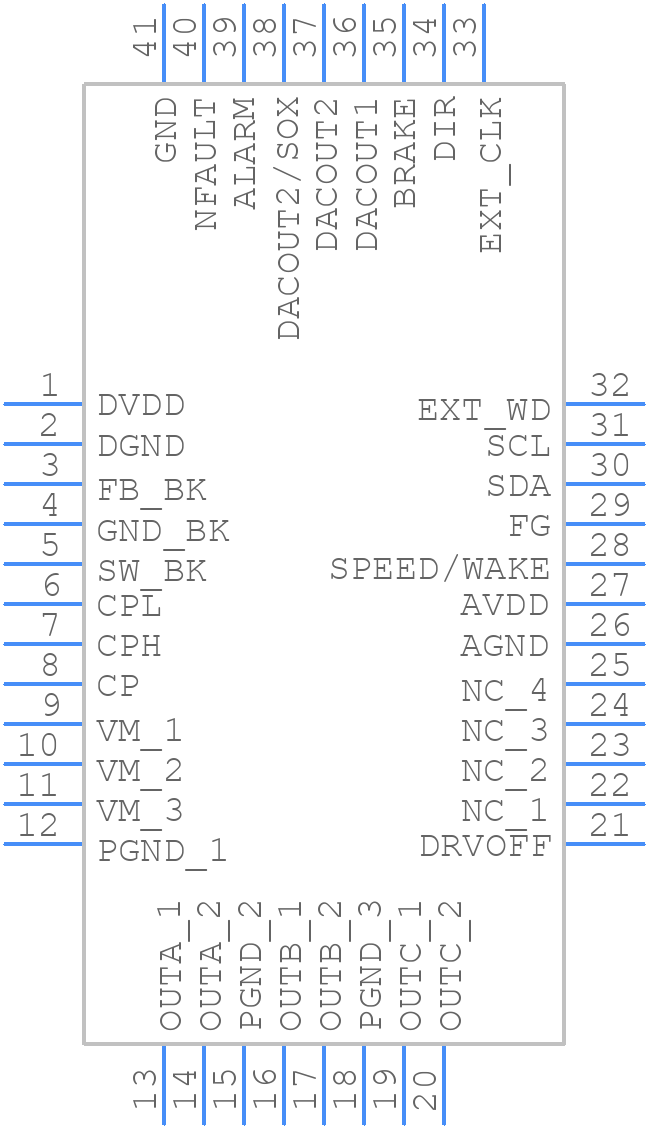

Use the download button to access the MCF8315C1VQRGFRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCF83,
or try a keyword search, such as Motion Control Electronics
